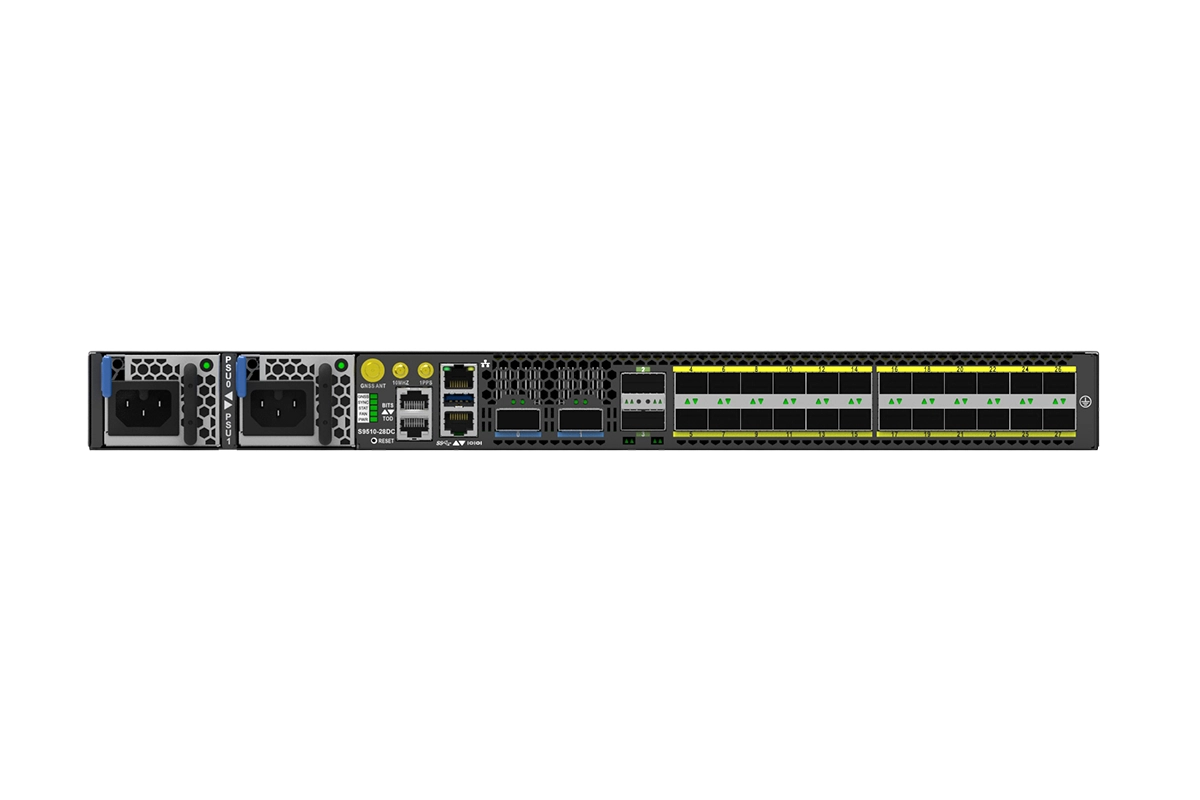

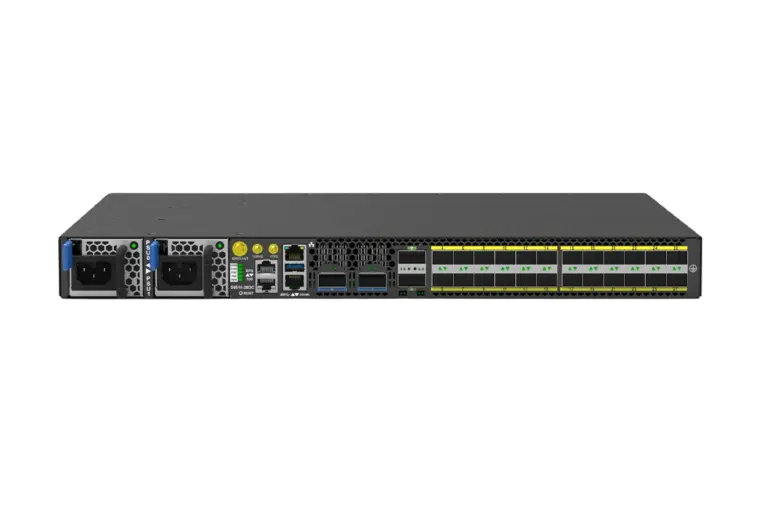

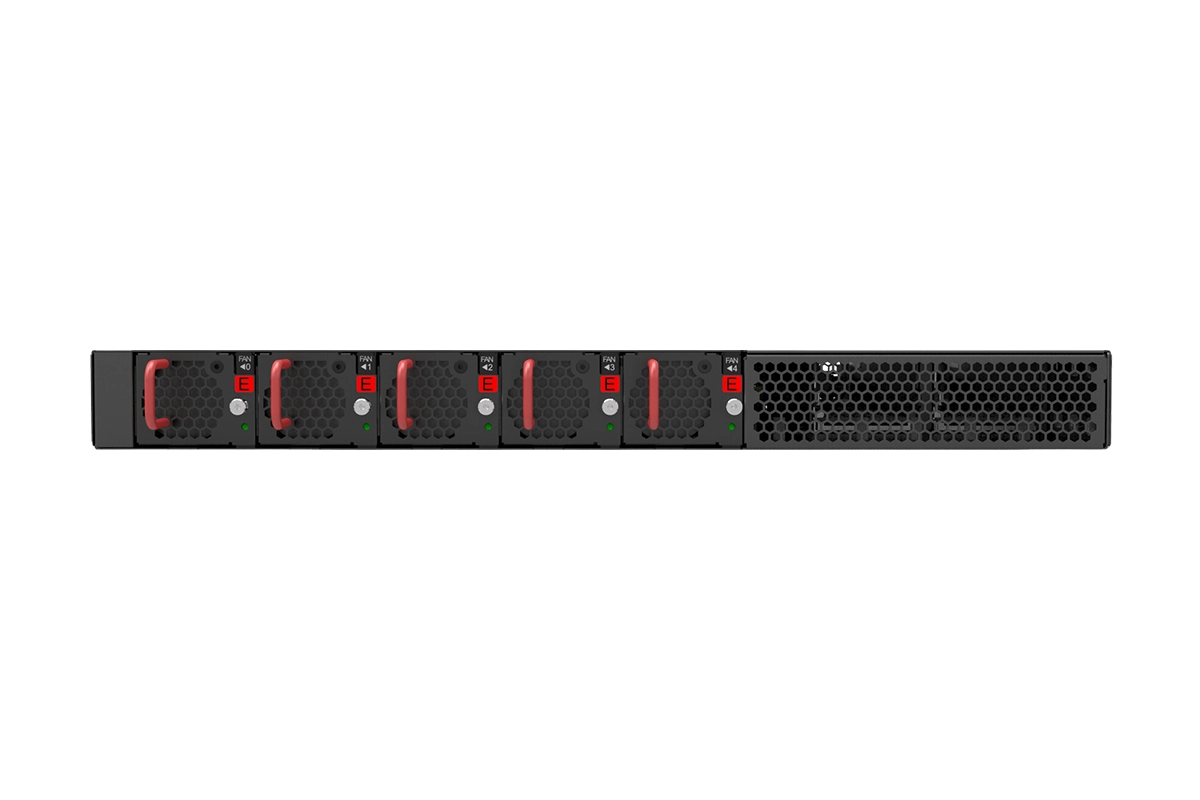

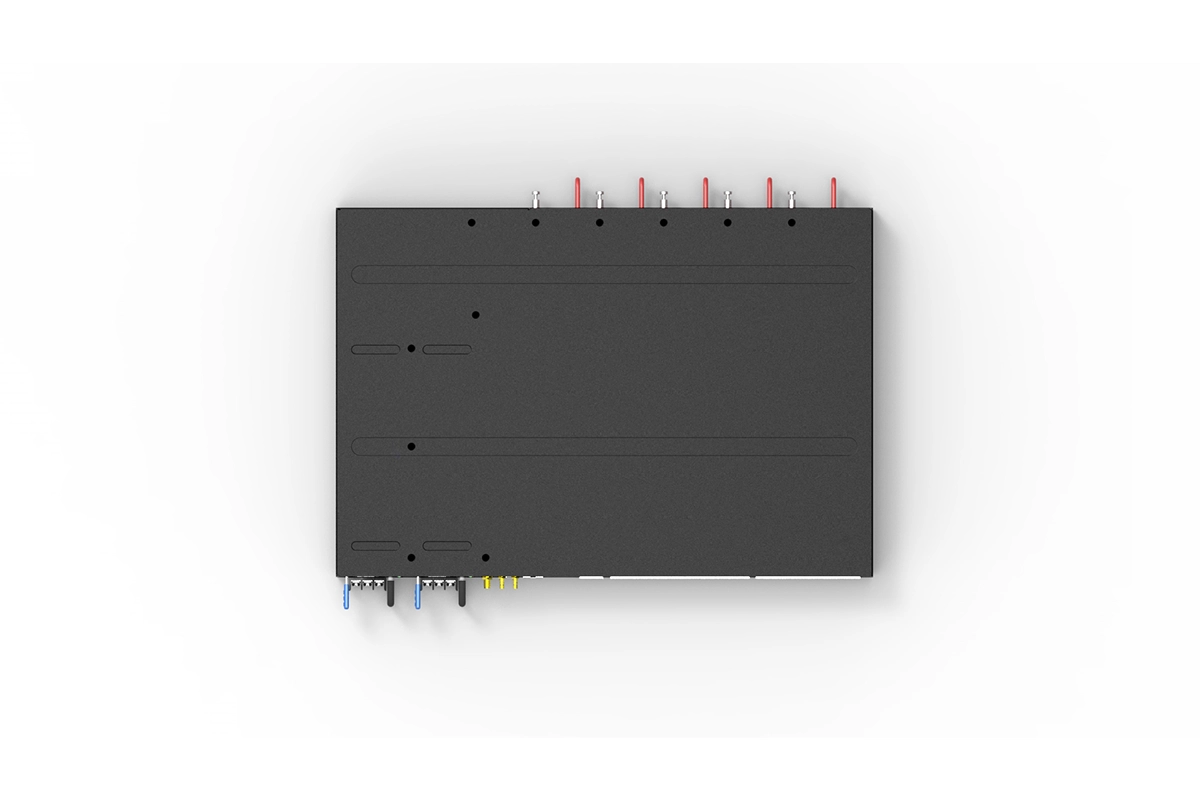

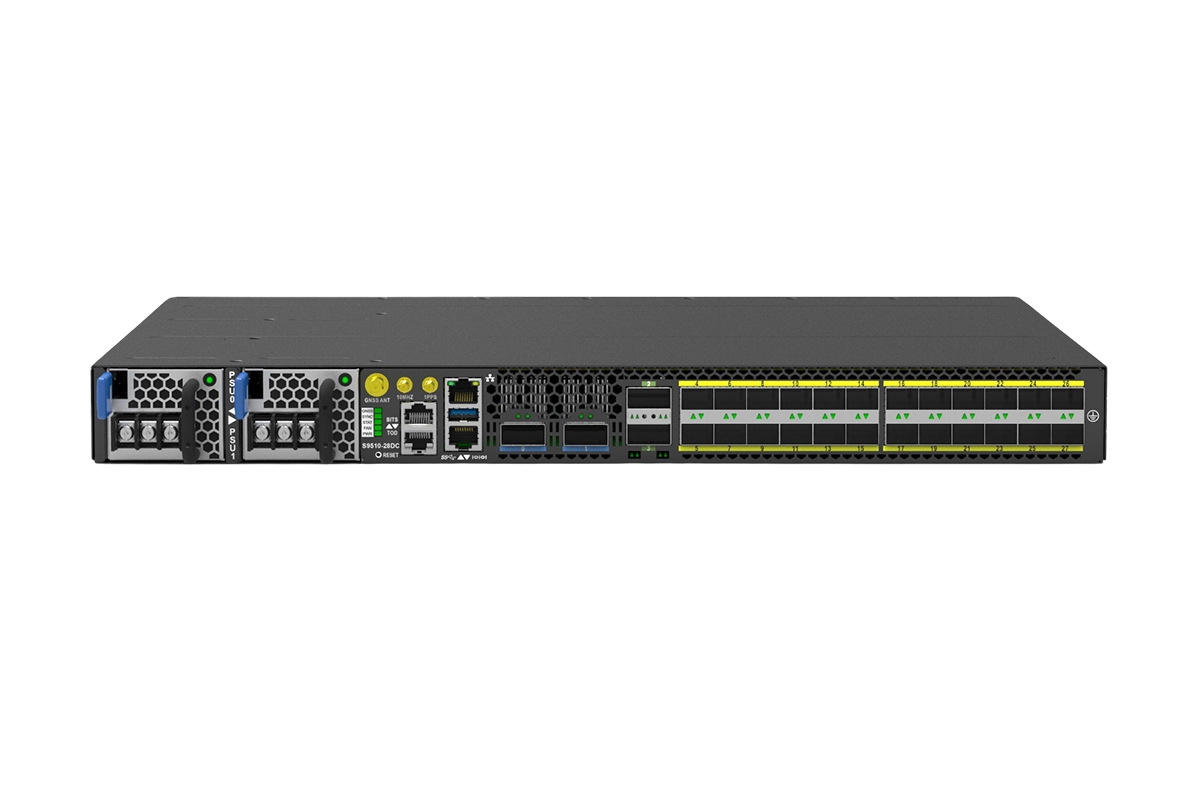

UfiSpace S9510-28DC | 25G Access Router
UfiSpace S9510-28DC Standard or Premium, 24 x 25G SFP28, 2 x 100G QSFP28, 2 x 400G QSFP-DD Access ONIE Router, Broadcom Qumran2a, Intel Atom® C3508 CPU, BMC, 2 x AC or 2 x DC PSU, F-Front-to-Back
Out of stock
UfiSpace S9510-28DC Standard or Premium, 24 x 25G SFP28, 2 x 100G QSFP28, 2 x 400G QSFP-DD Access ONIE Router, Broadcom Qumran2a, Intel Atom® C3508 CPU, BMC, 2 x AC or 2 x DC PSU, F-Front-to-Back
The UfiSpace S9510-28DC is an open-networking white-box router designed for the rigorous demands of 5G telecom backhaul networks. It enables a disaggregated network, reducing costs, increasing flexibility, and scaling services for edge computing, mobile backhaul, and broadband access.
With 28 high-speed ports, the router features OpenZR+, FlexE, and Ethernet OAM, supporting efficient data transport with IP/MPLS, Segment Routing, and ultra-low latency. It ensures precise timing with IEEE 1588v2, SyncE, and Time Sensitive Networking (TSN), critical for 5G applications.
The Baseboard Management Controller (BMC) AST2620 offers remote management for troubleshooting, diagnostics, and firmware updates, minimizing maintenance costs and downtime. The S9510-28DC is durable, temperature-hardened, and equipped with hot-swappable, redundant components for reliability in diverse environments, including outdoor deployments.
Supporting speeds up to 400G, it offers flexible port options and complies with open networking standards, enabling customizable, future-ready networks. The S9510-28DC delivers a scalable, efficient solution for evolving telecom needs.
Specifications
General Specifications
| Brand | UfiSpace |
|---|---|
| Data Rate | |
| Ports | |
| Configuration | Standard (Intel Atom® C3508, 8GB DDR4, 32GB SSD), Premium (Intel Atom® C3708, 16GB DDR4, 128GB SSD) |
Internal Hardware
| CPU | |
|---|---|
| DRAM | 8GB DDR4, 16GB DDR4 |
| Option Storage | 32GB SSD, 128GB SSD |
| Switch Silicon | |
| BMC Chip | AST2620 |
Performance
| Switching Capacity | 800 Gbps |
|---|---|
| Deep Buffer | 2GB |
Physical Characteristics
| Airflow | |
|---|---|
| Chassis Height | |
| Dimensions (HxWxD) | 44 x 440 x 302 mm (1.71 x 17.32 x 11.89 in) |
| Fan Module | 5 (4+1 Redundancy) |
| Weight | 4.9 kg (10.8 lbs) |
Software & Compatibility
| Compatible Operating System | Adtran Ensemble Activator, Arrcus ArcOS, IP Infusion OcNOS, Ribbon, RtBrick Full Stack (RBFS) |
|---|---|
| ONIE |
Power Characteristics
| Power Supply | |
|---|---|
| Power Module | 2 (1+1 Redundancy) |
| Typical Power | 137 W |
Environmental
| Humidity | 5% to 85% non-condensing |
|---|---|
| Operating Temperature | -40 to 65°C (-40 to 149°F) |
| Storage Temperature |
Additional Features
| Others | Internal GNSS receiver for master clock implementations, OpenZR+, Supports FlexE |
|---|
Features
No products selected for comparison.
Videos
No videos available.
Reviews
[cusrev_all_reviews sort="DESC" sort_by="date" per_page="10" number="-1" show_summary_bar="true" show_media="true" show_products="true" categories="" product_tags="" tags="" products="current" shop_reviews="true" number_shop_reviews="-1" inactive_products="false" show_replies="false" show_more="5" min_chars="0" avatars="initials" users="all" add_review="true"]
Compatibility List
ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.
No compatibility lists available.
Hardware Compatibility List
| Speed | Brand | Model | Switch Silicon | Ports |
|---|---|---|---|---|
| 1G | Alpha Networks | BES2348T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
| 1G | Alpha Networks | SCG60D0-484T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
| 400G | Alpha Networks | SNJ61D0-320F | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 1G | Celestica | DS1000 | Broadcom Trident3-X2 | 48 × 1G RJ45 + 8 × 10G SFP+ |
| 25G | Celestica | DS2000 | Broadcom Trident3-X5 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Celestica | DS3000 | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Celestica | DS4000 | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 800G | Celestica | DS4101 | Broadcom Tomahawk4 | 32 × QSFP-DD800 |
| 800G | Celestica | DS5000 | Broadcom Tomahawk5 | 64 × OSFP800 |
| 1G | Dell Technologies | N3248TE-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 + 4 × 10G SFP+, 2 × 100G QSFP28 |
| 1G | Dell Technologies | N3248P-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| 1G | Dell Technologies | E3248P-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | N3248X-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | E3248PXE-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | N3248PXE-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| 25G | Dell Technologies | S5212F-ON | Broadcom Trident3-X5 | 12 × 25G SFP28 + 3 × 100G QSFP28 |
| 25G | Dell Technologies | S5224F-ON | Broadcom Trident3-X5 | 24 × 25G SFP28 + 4 × 100G QSFP28 |
| 25G | Dell Technologies | S5248F-ON | Broadcom Trident3-X7 | 48 × 25G SFP28 + 4 x 25G SFP28, 2 x 100G QSFP-DD |
| 25G | Dell Technologies | S5296F-ON | Broadcom Trident3-X7 | 96 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Dell Technologies | Z9264F-ON | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | Dell Technologies | S5232F-ON | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 100G | Dell Technologies | S5448F-ON | Broadcom Trident4-X9 | 48 × 100G SFP56-DD + 8x400G QSFP-DD |
| 400G | Dell Technologies | Z9332F-ON | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Dell Technologies | Z9664F-ON | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 400G | Dell Technologies | Z9432F-ON | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 800G | Dell Technologies | Z9864F-ON | Broadcom Tomahawk5 | 64 × 800G OSFP112 |
| 1G | Edgecore Networks | AS4625-54T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 6 × 10G SFP+ |
| 1G | Edgecore Networks | AS4625-54P | Broadcom Trident3-X2 | 48 × 1G RJ45 PoE + 6 × 10G SFP+ |
| 1G | Edgecore Networks | AS4630-54TE | Broadcom Trident3-X3 | 48 × 1G RJ45 + 4 × 25G SFP28, 2 × 100G QSFP28 |
| 1G | Edgecore Networks | AS4630-54PE | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28 |
| Multi-Gigabit | Edgecore Networks | AS4630-54NPE | Broadcom Trident3-X3 | 36 × 1.G/2.5G RJ45, 12 × 1G/2.5G/5G/10G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28 |
| 10G | Edgecore Networks | AS5835-54T | Broadcom Trident3-X5 | 48 × 10G RJ45 + 6 × 100G QSFP28 |
| 10G | Edgecore Networks | AS5835-54X | Broadcom Trident3-X5 | 48 × 10G SFP+ + 6 × 100G QSFP28 |
| 25G | Edgecore Networks | AS7326-56X | Broadcom Trident3-X7 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Edgecore Networks | AS7712-32X | Broadcom Tomahawk | 32 × 100G QSFP28 |
| 100G | Edgecore Networks | AS7816-64X | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | Edgecore Networks | S7726-32X | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Edgecore Networks | AS9716-32D | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Edgecore Networks | AS9736-64D | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 400G | Edgecore Networks | AS9726-32DB | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 800G | Edgecore Networks | AIS800-64D | Broadcom Tomahawk5 | 64 × QSFP-DD800 |
| 25G | Extreme Networks | SLX 9150-48Y | Broadcom Trident3-X7 | 48 × 25G SFP28 + 6 × 100G QSFP28 |
| 100G | Extreme Networks | SLX 9250-32C | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Micas Networks | M2-W6920-32QC2X | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Micas Networks | M2-W6930-64QC | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 25G | QCT | T4048-IX8 | Broadcom Trident3-X5 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | QCT | T7064-IX4 | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | QCT | T7032-IX7 | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | QCT | T9032-IX9 | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 25G | UfiSpace | S8901-54XC | Broadcom Trident3-X5 | 48 × 25G SFP28 + 6 × 100G QSFP28 |
| 100G | UfiSpace | S9100-32X | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 1G | Wistron | SO-BI48B-4E | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
