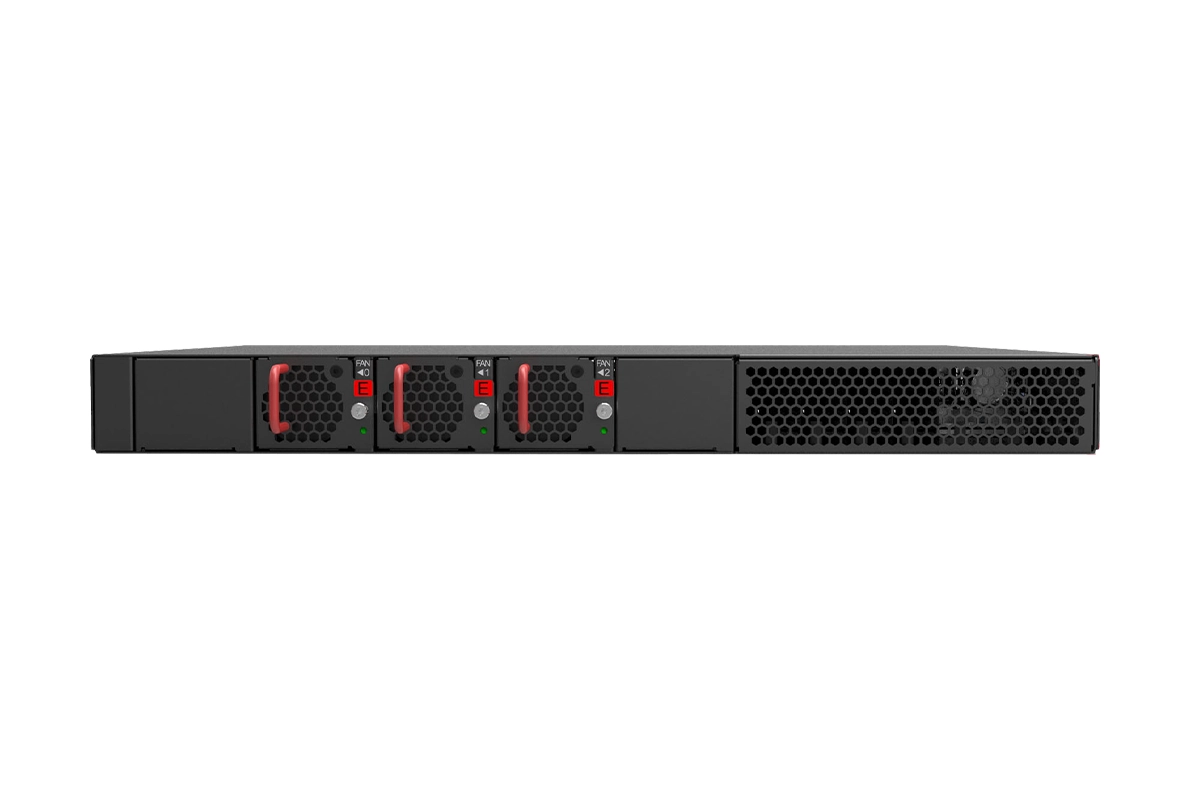

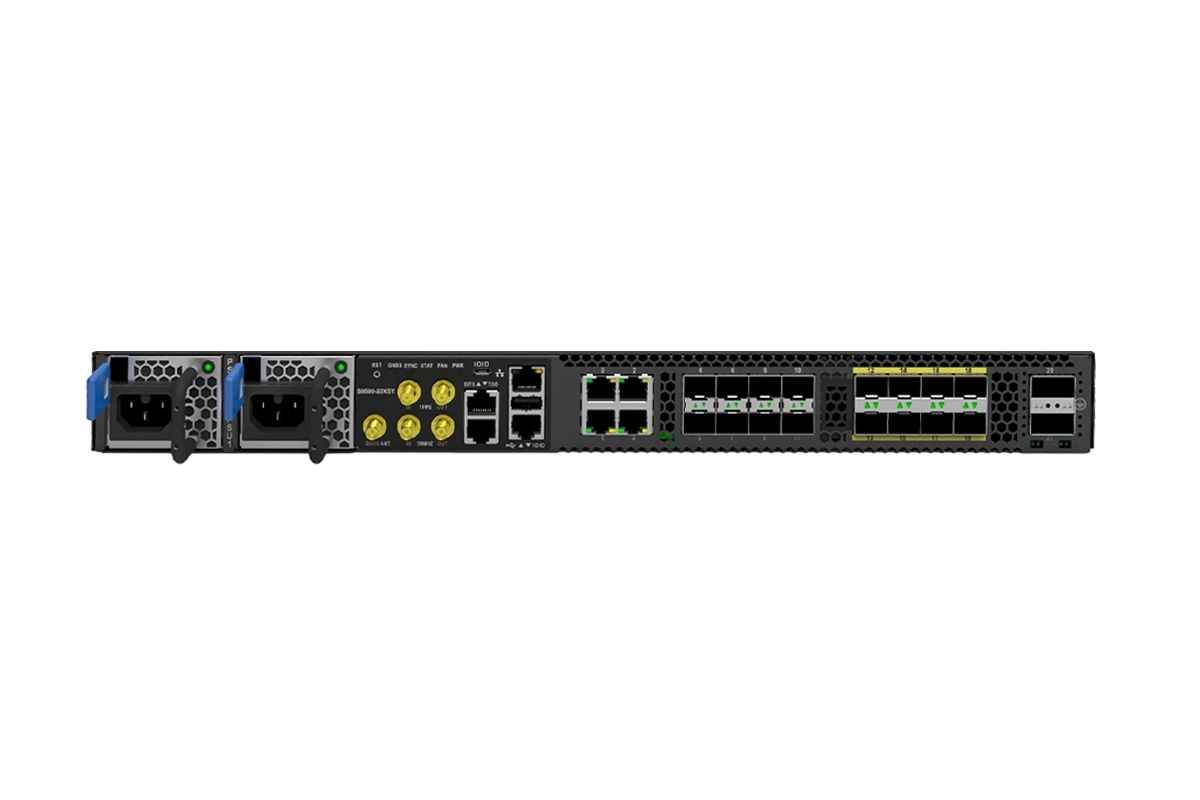

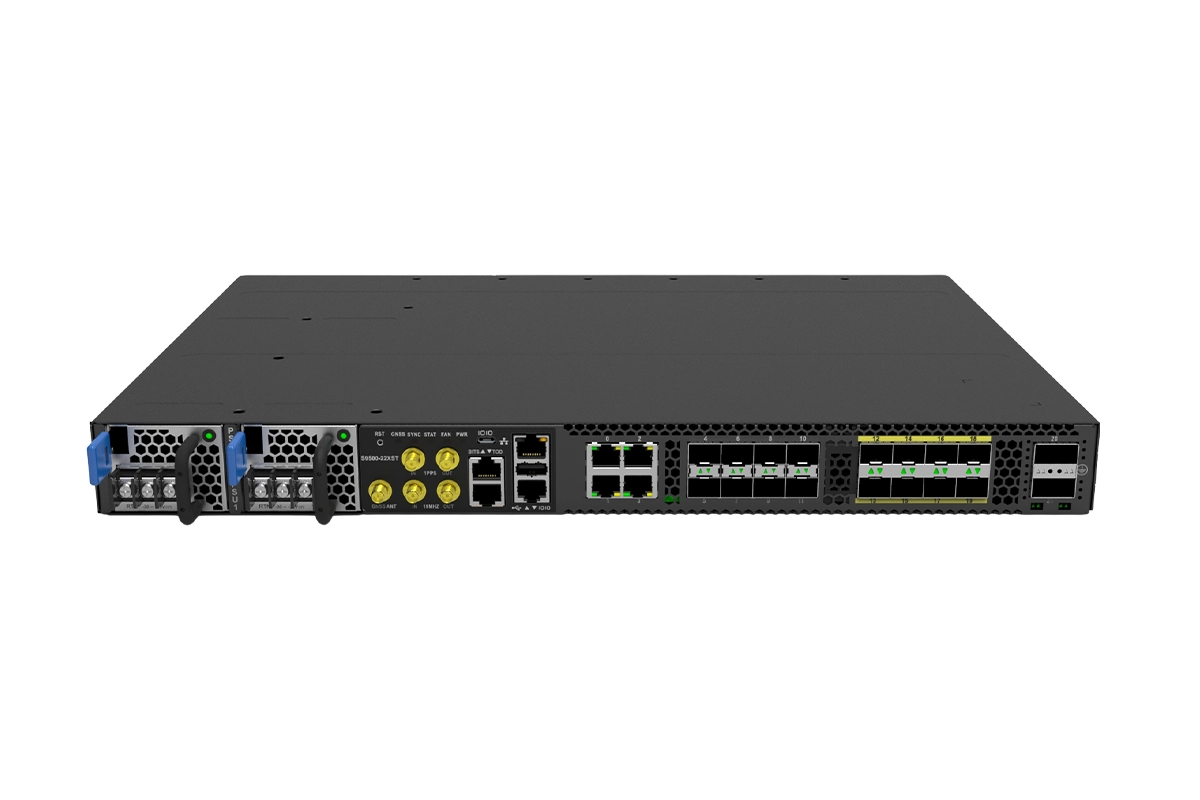

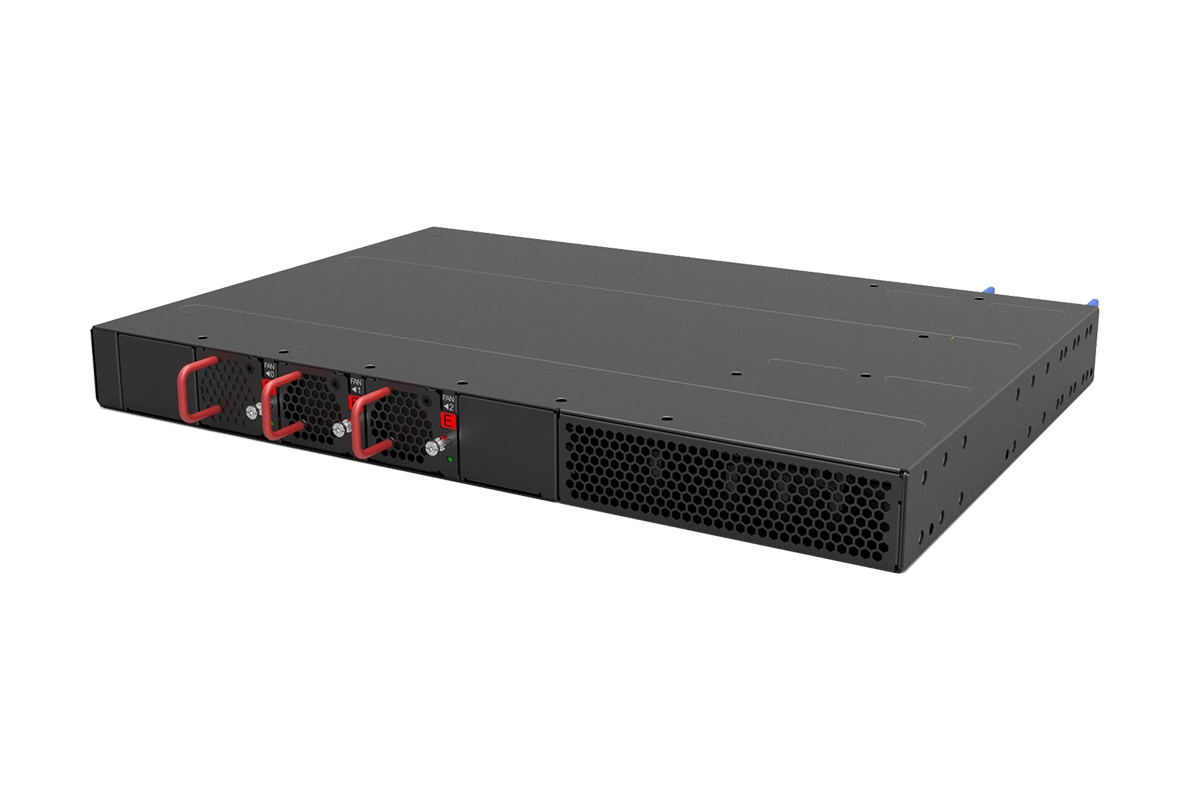

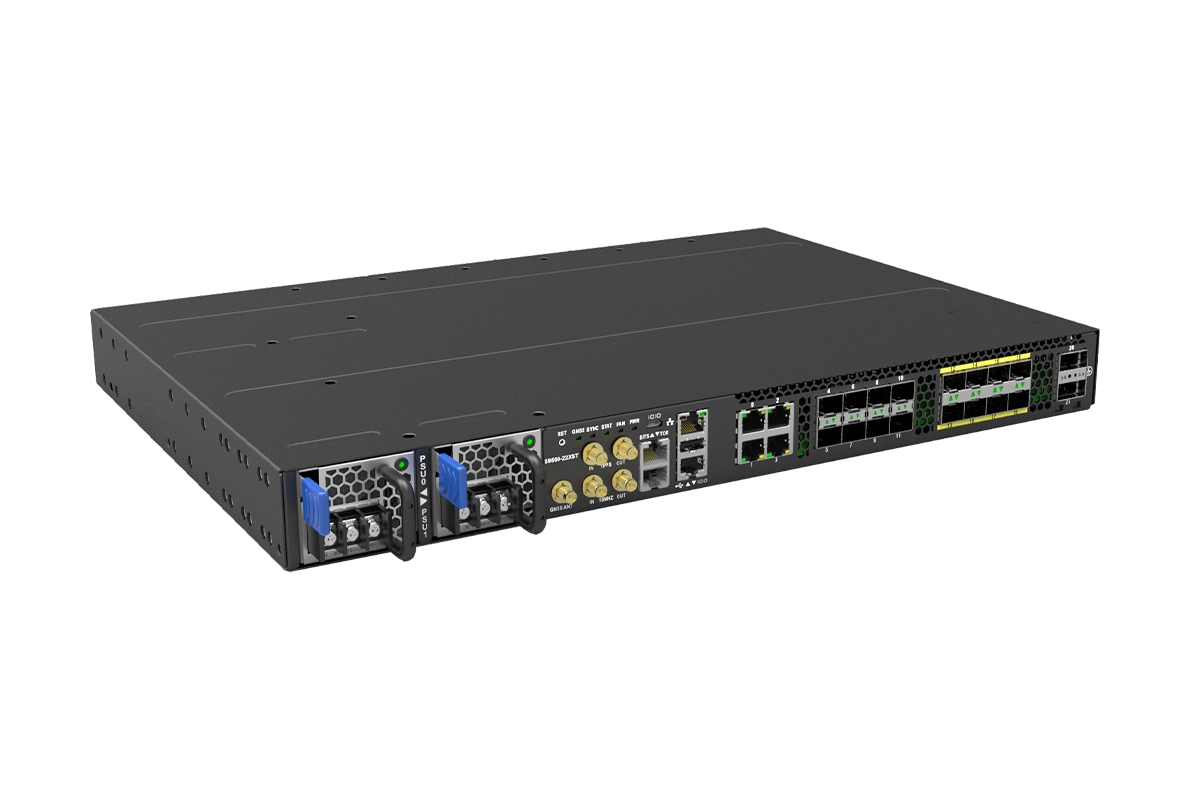

UfiSpace S9500-22XST | 25G Access Router

UfiSpace S9500-22XST | 25G Access Router - Image 2

UfiSpace S9500-22XST | 25G Access Router - Image 3

UfiSpace S9500-22XST | 25G Access Router - Image 4

UfiSpace S9500-22XST | 25G Access Router - Image 5

View details

UfiSpace S9500-22XST | 25G Access Router

(0 customer reviews)

UfiSpace S9500-22XST, 4 x 1G RJ45, 8 x 10G SFP+, 8 x 25G SFP28, 2 x 100G QSFP28 Access ONIE Router, Broadcom Qumran-AX, Intel® Pentium® 1519 CPU, BMC, 2 x AC or 2 x DC PSU, F-Front-to-Back

In stock

Power Supply

2 x AC PSU

2 x DC PSU

Airflow

F - Front-to-Back

Clear

Quantity

Get the Best Price

SKU S9500-22XST-x Categories Access Routers, Routing Tags 10G, 25G, 1G, 100G

UfiSpace S9500-22XST, 4 x 1G RJ45, 8 x 10G SFP+, 8 x 25G SFP28, 2 x 100G QSFP28 Access ONIE Router, Broadcom Qumran-AX, Intel® Pentium® 1519 CPU, BMC, 2 x AC or 2 x DC PSU, F-Front-to-Back

The UfiSpace S9500-22XST Disaggregated Cell Site Gateway Router is a high-performance, open-networking solution tailored for 5G backhaul, edge computing, and broadband access. Supporting Flexible Ethernet (FlexE) for efficient bandwidth management and advanced network slicing, it meets the needs of modern telecom infrastructures.

With full IEEE 1588v2, SyncE, and an integrated Stratum 3E OCXO, it ensures precise timing. Additional features include a GNSS receiver and interfaces like Time of Day (ToD), 1PPS, BITS, and 10MHz, making it ideal for high-precision deployments.

Equipped with 22 high-speed interfaces (100M/1G to 100G), an Intel Broadwell-DE quad-core processor, and a Broadcom Qumran-AX ASIC, it delivers a 300Gbps switching capacity and 2GB of deep buffering. Its integrated Baseboard Management Controller (BMC), powered by the AST2400 chipset, enhances value by enabling advanced automated and remote monitoring. This includes detailed hardware diagnostics, real-time platform health monitoring, and streamlined maintenance, reducing downtime and operational costs while improving overall reliability.

Compact and durable, the 1RU router operates in -40°C to 65°C, with redundant hot-swappable power supplies and fans, making it a reliable, future-proof solution for telecom operators.

Specifications

General Specifications

Brand	UfiSpace
Data Rate	10G RJ45, 10G SFP+, 25G SFP28, 100G QSFP28
Ports	22 Ports

Internal Hardware

CPU	Intel® Pentium® 1519
DRAM	8GB DDR4
Option Storage	32GB SSD
Switch Silicon	Broadcom Qumran-AX
BMC Chip	AST2400

Performance

Switching Capacity	300 Gbps
Deep Buffer	2GB

Physical Characteristics

Airflow	F – Front-to-Back
Chassis Height	1U
Dimensions (HxWxD)	44 x 440 x 302 mm (1.71 x 17.32 x 11.89 in)
Fan Module	3 (2 + 1 Redundancy)
Weight	4.8 kg (10.5 lb)

Software & Compatibility

Compatible Operating System	Adtran Ensemble Activator, IP Infusion OcNOS, RtBrick Full Stack (RBFS)
ONIE	Yes

Power Characteristics

Power Supply	2 x AC PSU, 2 x DC PSU
Power Module	2 (1+1 Redundancy)
Typical Power	112 W

Environmental

Humidity	5% to 85% non-condensing
Operating Temperature	-40 to 65°C (-40 to 149°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)

Additional Features

Others	Internal GNSS receiver for master clock implementations, Supports FlexE
