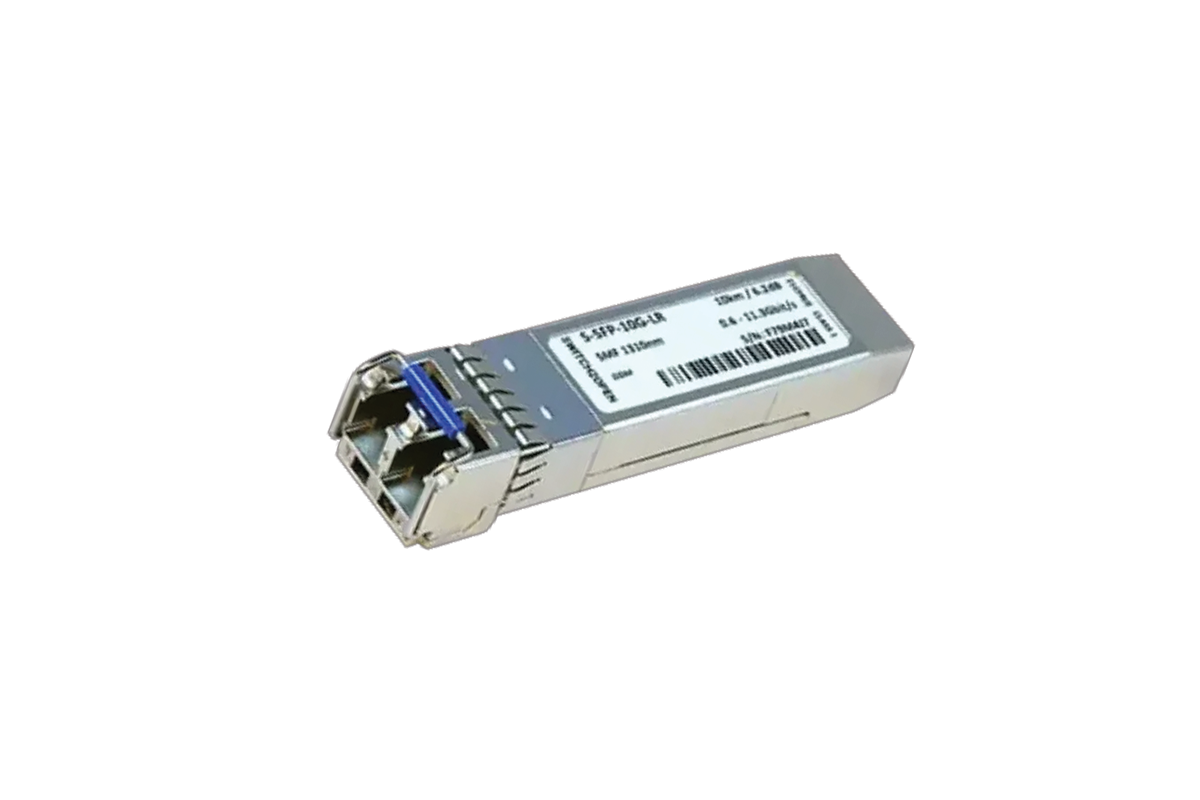

Switch2Open S-SFP-10G-LR | 10G LR Universal SFP+ Transceiver

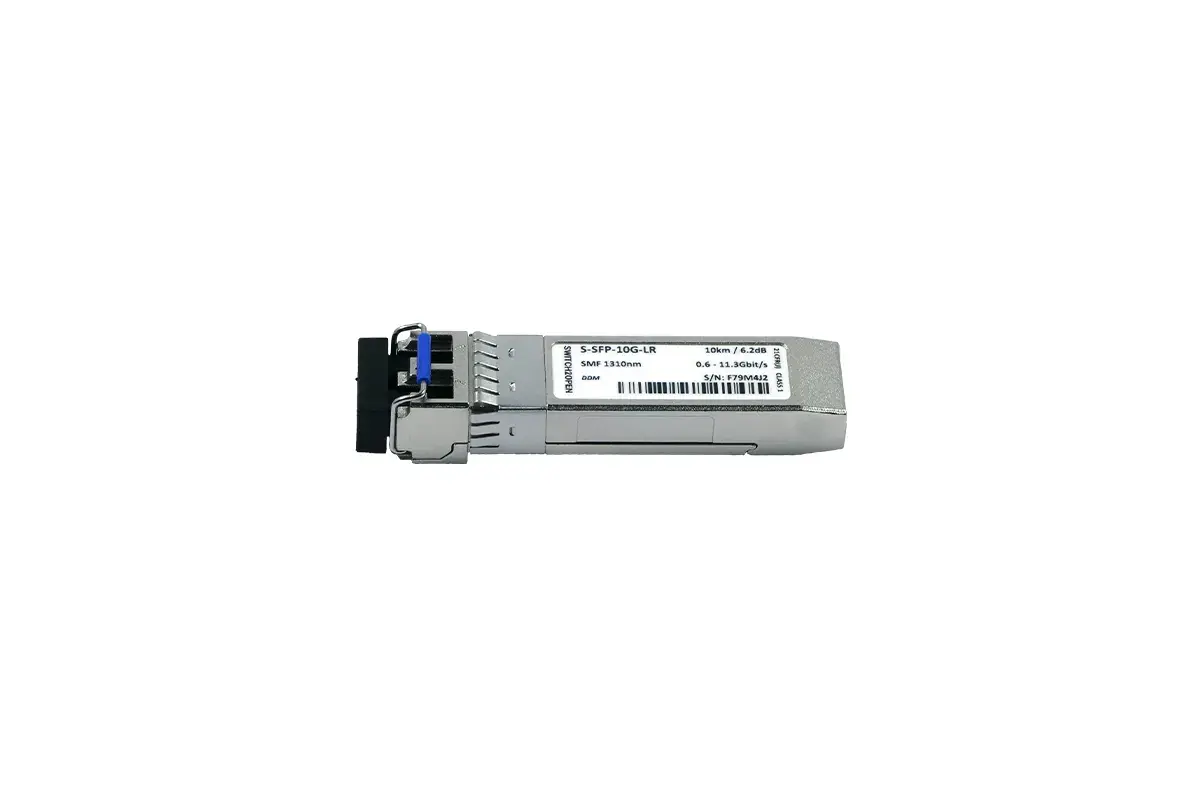

Switch2Open S-SFP-10G-LR | 10G LR Universal SFP+ Transceiver - Image 2
View details

Switch2Open S-SFP-10G-LR | 10G LR Universal SFP+ Transceiver

Switch2Open 10G SFP+ LR Transceiver, 1310 nm, LC, Singlemode, 10 km

In stock
450+ sold
Get the Best Price
Free Product Trial
Book a Training
SKU S-SFP-10G-LR Categories , , Tags ,

Switch2Open 10G SFP+ LR Transceiver, 1310 nm, LC, Singlemode, 10 km

Switch2Open 10G SFP+ Transceiver Module not only delivers high-performance data transmission over a distance of up to 10km, designed to be highly versatile and compatible with a wide range of communication standards, protocols, and frequency bands, making it a truly Universal Transceiver. 10GBASE-LR refers to an Ethernet standard that allows speed of 10Gbps data transmission over a distances of 10km using singlemode fiber optic cable. The “10GBASE” prefix indicates a data rate of 10 Gbps, while “LR” stands for Long Range. Operating on a 1310nm wavelength via duplex LC singlemode fiber (SMF), this transceiver ensures consistent and reliable communication. Compliant with protocols SFP+ MSA, IEEE 802.3ae-2002 10GBASE-LR, it accommodates a wide variety of network demands. With 1 W power consumption and an operating temperature range from 0 to 70°C, this module is an efficient and adaptable choice for data centers, enterprise networks, and service provider.

Specifications

General Specifications
Brand

Switch2Open
Form Factor

Model Number

S-SFP-10G-LR
Protocols

IEEE 802.3ae-2002
Type

Vendor Compatibility

MSA Standard
Connector Type

LC-Duplex PC
Optical Characteristics
Media Type

Single-Mode
Receiver Type

PIN
Transmitter Type

DFB
Wavelength (TX/RX Typical)

1310 nm
Performance
Max Data Rate

11.3 Gbps
Max Distance

10 km (32808 ft)
Power Characteristics
Max Power Consumption

1 W
Receiver min/max

-14.4 / 0.5 dB (overload)
Transmit min/max

-8.2 / 0.5 dBm
Extinction Ratio

3.5 dB
Additional Features
Power Budget

6.2 dB
DDM

Yes, internally calibrated
Additional Features
Temprature Range

0 to 70°C (32 to 158°F)

Features

No products selected for comparison.

Videos

No videos available.

Reviews

[cusrev_all_reviews sort="DESC" sort_by="date" per_page="10" number="-1" show_summary_bar="true" show_media="true" show_products="true" categories="" product_tags="" tags="" products="current" shop_reviews="true" number_shop_reviews="-1" inactive_products="false" show_replies="false" show_more="5" min_chars="0" avatars="initials" users="all" add_review="true"]

Compatibility List

ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.

No compatibility lists available.

Hardware Compatibility List

Speed Brand Model Switch Silicon Ports
1G Alpha Networks BES2348T Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
1G Alpha Networks SCG60D0-484T Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
400G Alpha Networks SNJ61D0-320F Broadcom Trident4-X11 32 × 400G QSFP-DD
1G Celestica DS1000 Broadcom Trident3-X2 48 × 1G RJ45 + 8 × 10G SFP+
25G Celestica DS2000 Broadcom Trident3-X5 48 × 25G SFP28 + 8 × 100G QSFP28
100G Celestica DS3000 Broadcom Trident3-X7 32 × 100G QSFP28
400G Celestica DS4000 Broadcom Tomahawk3 32 × 400G QSFP-DD
800G Celestica DS4101 Broadcom Tomahawk4 32 × QSFP-DD800
800G Celestica DS5000 Broadcom Tomahawk5 64 × OSFP800
1G Dell Technologies N3248TE-ON Broadcom Trident3-X3 48 × 1G RJ45 + 4 × 10G SFP+, 2 × 100G QSFP28
1G Dell Technologies N3248P-ON Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
1G Dell Technologies E3248P-ON Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies N3248X-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies E3248PXE-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies N3248PXE-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
25G Dell Technologies S5212F-ON Broadcom Trident3-X5 12 × 25G SFP28 + 3 × 100G QSFP28
25G Dell Technologies S5224F-ON Broadcom Trident3-X5 24 × 25G SFP28 + 4 × 100G QSFP28
25G Dell Technologies S5248F-ON Broadcom Trident3-X7 48 × 25G SFP28 + 4 x 25G SFP28, 2 x 100G QSFP-DD
25G Dell Technologies S5296F-ON Broadcom Trident3-X7 96 × 25G SFP28 + 8 × 100G QSFP28
100G Dell Technologies Z9264F-ON Broadcom Tomahawk2 64 × 100G QSFP28
100G Dell Technologies S5232F-ON Broadcom Trident3-X7 32 × 100G QSFP28
100G Dell Technologies S5448F-ON Broadcom Trident4-X9 48 × 100G SFP56-DD + 8x400G QSFP-DD
400G Dell Technologies Z9332F-ON Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Dell Technologies Z9664F-ON Broadcom Tomahawk4 64 × 400G QSFP-DD
400G Dell Technologies Z9432F-ON Broadcom Trident4-X11 32 × 400G QSFP-DD
800G Dell Technologies Z9864F-ON Broadcom Tomahawk5 64 × 800G OSFP112
1G Edgecore Networks AS4625-54T Broadcom Trident3-X2 48 × 1G RJ45 + 6 × 10G SFP+
1G Edgecore Networks AS4625-54P Broadcom Trident3-X2 48 × 1G RJ45 PoE + 6 × 10G SFP+
1G Edgecore Networks AS4630-54TE Broadcom Trident3-X3 48 × 1G RJ45 + 4 × 25G SFP28, 2 × 100G QSFP28
1G Edgecore Networks AS4630-54PE Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28
Multi-Gigabit Edgecore Networks AS4630-54NPE Broadcom Trident3-X3 36 × 1.G/2.5G RJ45, 12 × 1G/2.5G/5G/10G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28
10G Edgecore Networks AS5835-54T Broadcom Trident3-X5 48 × 10G RJ45 + 6 × 100G QSFP28
10G Edgecore Networks AS5835-54X Broadcom Trident3-X5 48 × 10G SFP+ + 6 × 100G QSFP28
25G Edgecore Networks AS7326-56X Broadcom Trident3-X7 48 × 25G SFP28 + 8 × 100G QSFP28
100G Edgecore Networks AS7712-32X Broadcom Tomahawk 32 × 100G QSFP28
100G Edgecore Networks AS7816-64X Broadcom Tomahawk2 64 × 100G QSFP28
100G Edgecore Networks S7726-32X Broadcom Trident3-X7 32 × 100G QSFP28
400G Edgecore Networks AS9716-32D Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Edgecore Networks AS9736-64D Broadcom Tomahawk4 64 × 400G QSFP-DD
400G Edgecore Networks AS9726-32DB Broadcom Trident4-X11 32 × 400G QSFP-DD
800G Edgecore Networks AIS800-64D Broadcom Tomahawk5 64 × QSFP-DD800
25G Extreme Networks SLX 9150-48Y Broadcom Trident3-X7 48 × 25G SFP28 + 6 × 100G QSFP28
100G Extreme Networks SLX 9250-32C Broadcom Trident3-X7 32 × 100G QSFP28
400G Micas Networks M2-W6920-32QC2X Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Micas Networks M2-W6930-64QC Broadcom Tomahawk4 64 × 400G QSFP-DD
25G QCT T4048-IX8 Broadcom Trident3-X5 48 × 25G SFP28 + 8 × 100G QSFP28
100G QCT T7064-IX4 Broadcom Tomahawk2 64 × 100G QSFP28
100G QCT T7032-IX7 Broadcom Trident3-X7 32 × 100G QSFP28
400G QCT T9032-IX9 Broadcom Tomahawk3 32 × 400G QSFP-DD
25G UfiSpace S8901-54XC Broadcom Trident3-X5 48 × 25G SFP28 + 6 × 100G QSFP28
100G UfiSpace S9100-32X Broadcom Trident3-X7 32 × 100G QSFP28
1G Wistron SO-BI48B-4E Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
