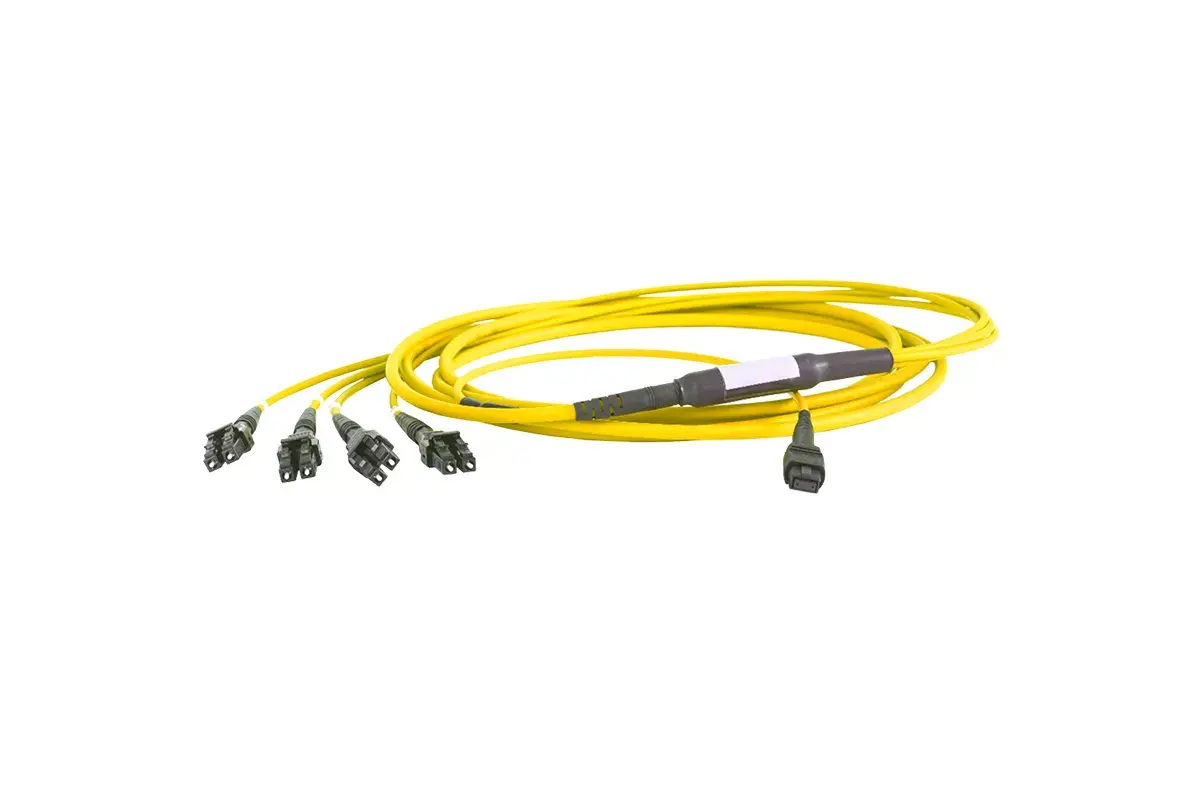

Switch2Open S-CAB-OS2-MTP-4LCD-X | MTP to 4× LC-Duplex OS2 Singlemode Fiber-Optic Cable
Switch2Open MTP/MPO-12 (female) to 4 x LC-Duplex Breakout OS2 Singlemode Fiber Optic Patchcord, 0.5 – 100m
In stock
50+
sold
Switch2Open MTP/MPO-12 (female) to 4 x LC-Duplex Breakout OS2 Singlemode Fiber Optic Patchcord, 0.5 - 100m
Switch2Open S-CAB-OS2-MTP-4LCD-X MTP to 4 x LC-Duplex OS2 Singlemode Fiber-Optic Cable. Applications for MTP to 4 x LC-Duplex cables include high-speed data transmission, particularly in data centers where efficient and organized cabling is crucial. Built with OS2 singlemode fiber, this type of fiber optic cable is designed for transmitting data over long distances with a single beam or mode of light. OS2 cables are optimized for low signal attenuation and are commonly used in long-haul telecommunications and data center applications. Available in a range of lengths from 0.5 meters to 100 meters, you can choose the perfect cable length to suit your specific networking setup. Whether you’re establishing connections within data centers, corporate networks, or any other high-demand networking environments, the Switch2Open S-CAB-OS2-MTP-4LCD-X Fiber-Optic Cable ensures reliable and efficient data transmission. Choose the perfect cable length for your requirements and experience enhanced connectivity with this exceptional fiber-optic solution.
Specifications
General Specifications
| Brand | Switch2Open |
|---|---|
| Connectors |
Optical Characteristics
| Media Type | Single-Mode OS2 |
|---|---|
| MTP/ MPO Polarity |
Physical Characteristics
| Cable Diameter | 3mm |
|---|---|
| Cable Jacket | LSZH |
| Cable Jacket Colour | Yellow |
| Polish | APC/ PC |
Additional Features
| Temprature Range | -40 to 85°C (-40 to 185°F) |
|---|
Features
No products selected for comparison.
Videos
No videos available.
Reviews
[cusrev_all_reviews sort="DESC" sort_by="date" per_page="10" number="-1" show_summary_bar="true" show_media="true" show_products="true" categories="" product_tags="" tags="" products="current" shop_reviews="true" number_shop_reviews="-1" inactive_products="false" show_replies="false" show_more="5" min_chars="0" avatars="initials" users="all" add_review="true"]
Compatibility List
ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.
No compatibility lists available.
Hardware Compatibility List
| Speed | Brand | Model | Switch Silicon | Ports |
|---|---|---|---|---|
| 1G | Alpha Networks | BES2348T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
| 1G | Alpha Networks | SCG60D0-484T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
| 400G | Alpha Networks | SNJ61D0-320F | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 1G | Celestica | DS1000 | Broadcom Trident3-X2 | 48 × 1G RJ45 + 8 × 10G SFP+ |
| 25G | Celestica | DS2000 | Broadcom Trident3-X5 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Celestica | DS3000 | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Celestica | DS4000 | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 800G | Celestica | DS4101 | Broadcom Tomahawk4 | 32 × QSFP-DD800 |
| 800G | Celestica | DS5000 | Broadcom Tomahawk5 | 64 × OSFP800 |
| 1G | Dell Technologies | N3248TE-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 + 4 × 10G SFP+, 2 × 100G QSFP28 |
| 1G | Dell Technologies | N3248P-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| 1G | Dell Technologies | E3248P-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | N3248X-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | E3248PXE-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | N3248PXE-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| 25G | Dell Technologies | S5212F-ON | Broadcom Trident3-X5 | 12 × 25G SFP28 + 3 × 100G QSFP28 |
| 25G | Dell Technologies | S5224F-ON | Broadcom Trident3-X5 | 24 × 25G SFP28 + 4 × 100G QSFP28 |
| 25G | Dell Technologies | S5248F-ON | Broadcom Trident3-X7 | 48 × 25G SFP28 + 4 x 25G SFP28, 2 x 100G QSFP-DD |
| 25G | Dell Technologies | S5296F-ON | Broadcom Trident3-X7 | 96 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Dell Technologies | Z9264F-ON | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | Dell Technologies | S5232F-ON | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 100G | Dell Technologies | S5448F-ON | Broadcom Trident4-X9 | 48 × 100G SFP56-DD + 8x400G QSFP-DD |
| 400G | Dell Technologies | Z9332F-ON | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Dell Technologies | Z9664F-ON | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 400G | Dell Technologies | Z9432F-ON | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 800G | Dell Technologies | Z9864F-ON | Broadcom Tomahawk5 | 64 × 800G OSFP112 |
| 1G | Edgecore Networks | AS4625-54T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 6 × 10G SFP+ |
| 1G | Edgecore Networks | AS4625-54P | Broadcom Trident3-X2 | 48 × 1G RJ45 PoE + 6 × 10G SFP+ |
| 1G | Edgecore Networks | AS4630-54TE | Broadcom Trident3-X3 | 48 × 1G RJ45 + 4 × 25G SFP28, 2 × 100G QSFP28 |
| 1G | Edgecore Networks | AS4630-54PE | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28 |
| Multi-Gigabit | Edgecore Networks | AS4630-54NPE | Broadcom Trident3-X3 | 36 × 1.G/2.5G RJ45, 12 × 1G/2.5G/5G/10G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28 |
| 10G | Edgecore Networks | AS5835-54T | Broadcom Trident3-X5 | 48 × 10G RJ45 + 6 × 100G QSFP28 |
| 10G | Edgecore Networks | AS5835-54X | Broadcom Trident3-X5 | 48 × 10G SFP+ + 6 × 100G QSFP28 |
| 25G | Edgecore Networks | AS7326-56X | Broadcom Trident3-X7 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Edgecore Networks | AS7712-32X | Broadcom Tomahawk | 32 × 100G QSFP28 |
| 100G | Edgecore Networks | AS7816-64X | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | Edgecore Networks | S7726-32X | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Edgecore Networks | AS9716-32D | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Edgecore Networks | AS9736-64D | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 400G | Edgecore Networks | AS9726-32DB | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 800G | Edgecore Networks | AIS800-64D | Broadcom Tomahawk5 | 64 × QSFP-DD800 |
| 25G | Extreme Networks | SLX 9150-48Y | Broadcom Trident3-X7 | 48 × 25G SFP28 + 6 × 100G QSFP28 |
| 100G | Extreme Networks | SLX 9250-32C | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Micas Networks | M2-W6920-32QC2X | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Micas Networks | M2-W6930-64QC | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 25G | QCT | T4048-IX8 | Broadcom Trident3-X5 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | QCT | T7064-IX4 | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | QCT | T7032-IX7 | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | QCT | T9032-IX9 | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 25G | UfiSpace | S8901-54XC | Broadcom Trident3-X5 | 48 × 25G SFP28 + 6 × 100G QSFP28 |
| 100G | UfiSpace | S9100-32X | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 1G | Wistron | SO-BI48B-4E | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
