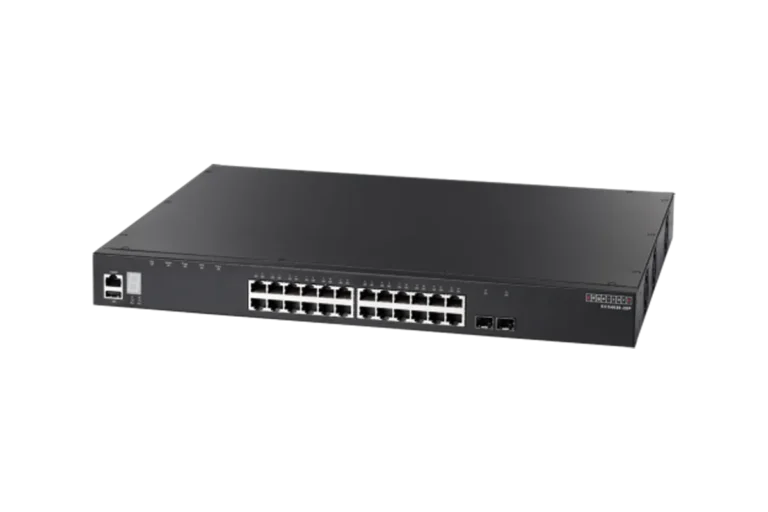

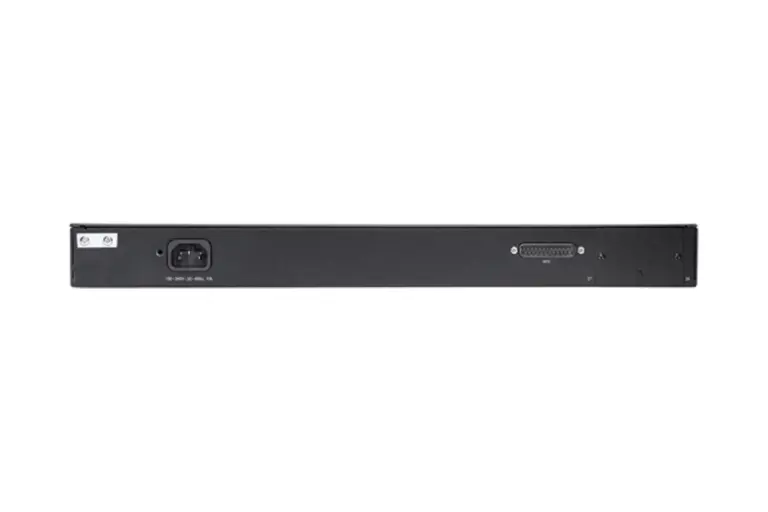

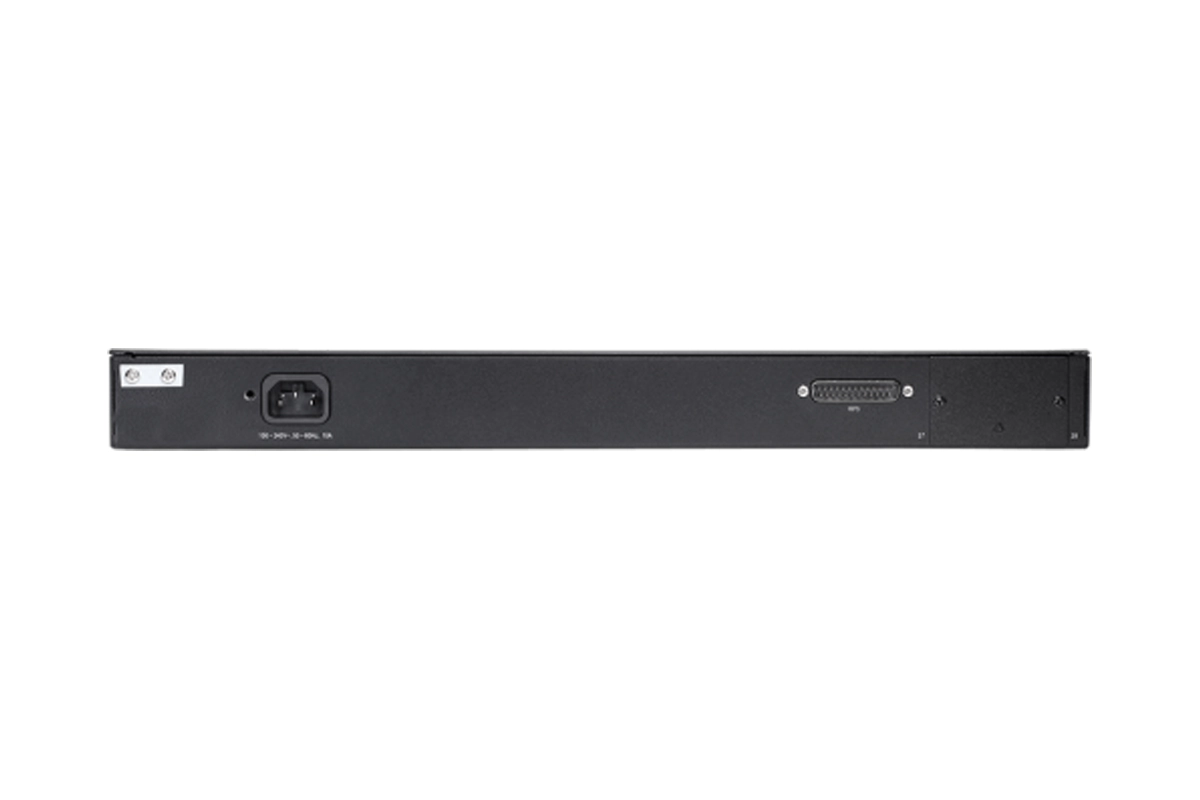

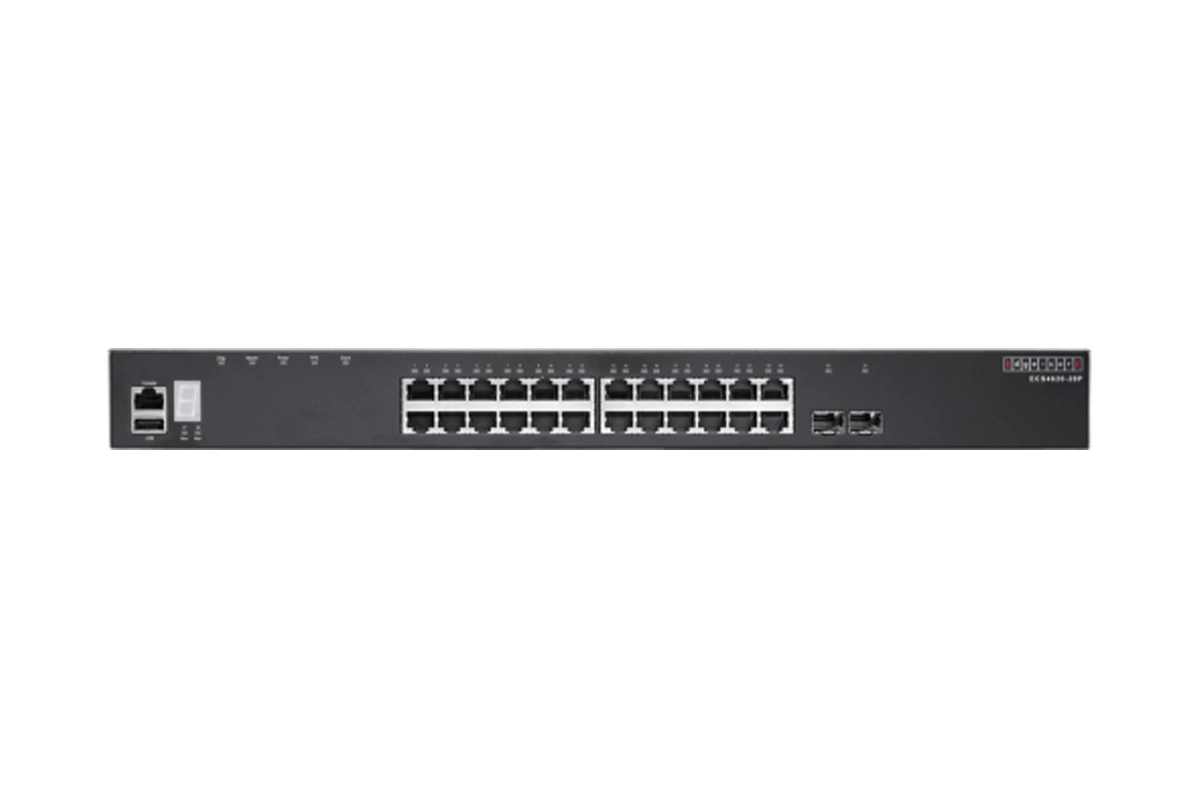

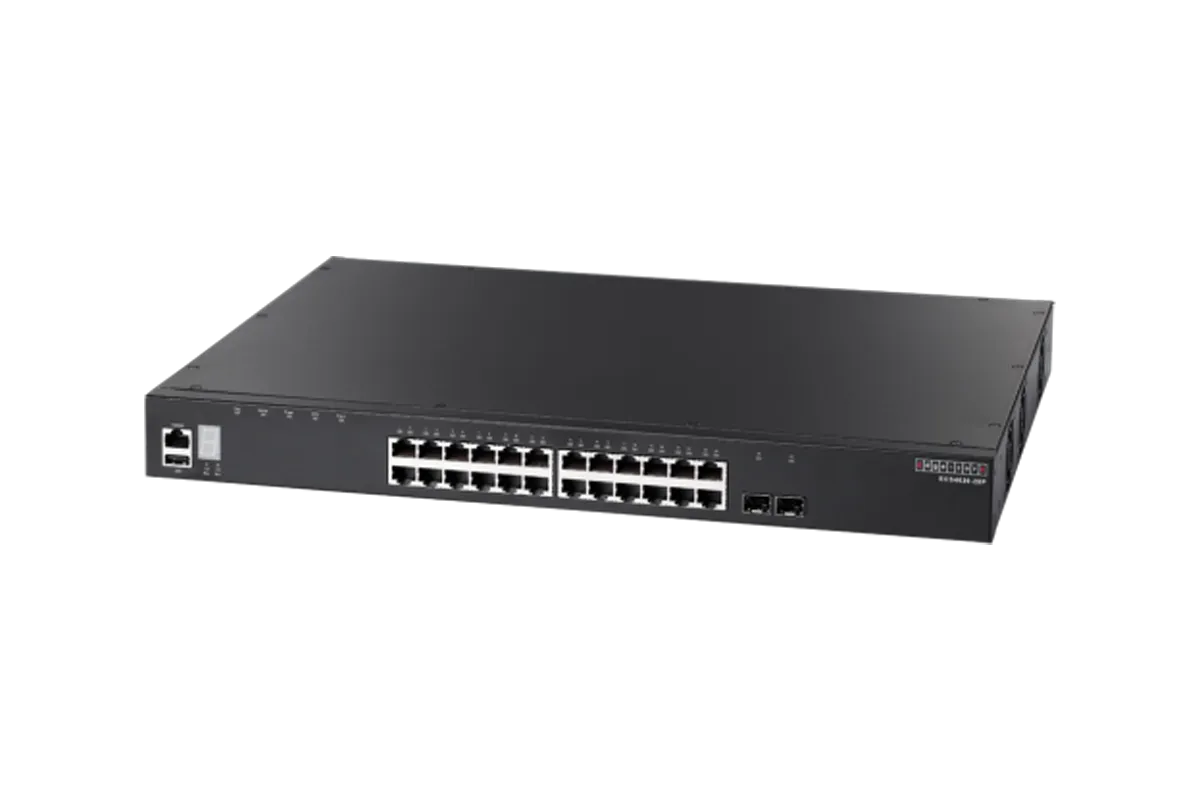

Edgecore ECS4620-28P: 24x1G RJ45 PoE, 2x10G SFP+ | L3 | 1G Access
Edgecore Networks 24 x 1G RJ45 PoE+, 2 x 10G SFP+, Access Switch, L3 Support, PoE Budget 410W, 1 x AC
Out of stock
8
sold
Edgecore Networks 24 x 1G RJ45 PoE+, 2 x 10G SFP+, Access Switch, L3 Support, PoE Budget 410W, 1 x AC
The ECS4620-28P is a high-performance switch from Edgecore designed for enterprise and data center applications. It features 24 RJ-45 10/100/1000BASE-T ports, 2 10G SFP+ uplink ports, and a 10G dual port expansion slot. With a switching capacity of 128 Gbps and a forwarding rate of 95.23 Mpps, it ensures efficient data handling.
Equipped with 128 MB of flash memory and 256 MB of DRAM, the switch supports jumbo frames up to 10K and can handle up to 16K MAC addresses. It offers robust PoE capabilities, supporting IEEE 802.3af and IEEE 802.3at standards, with a PoE power budget of 410 W.
Designed for standard 19″ rack space, the ECS4620-28P measures 44 x 31.5 x 4.4 cm and weighs 4.5 kg. It operates within 0 to 45ºC and can be stored between -40 to 70ºC, performing optimally in humidity levels from 10% to 90%, non-condensing. This switch is ideal for powering various network devices and managing high-demand environments.
Specifications
General Specifications
| Brand | Edgecore Networks |
|---|---|
| Ports |
Internal Hardware
| DRAM | 256 MB |
|---|---|
| Flash Memory |
Performance
| Forwarding Rate | 95 Mpps |
|---|---|
| Jumbo Frame | 10K |
| MAC Address | 16K |
| Switching Capacity | 128 Gbps |
Physical Characteristics
| Dimensions (HxWxD) | 4.4 x 44 x 32 cm (1.7 x 17.3 x 12.4 in) |
|---|---|
| Weight | 4.5 kg (9.9 lb) |
Power Characteristics
| Max Power Consumption | 49 W |
|---|---|
| Power Supply |
Environmental
| Humidity | 10% to 90% non condensing |
|---|---|
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Storage Temperature |
PoE Information
| PoE | |
|---|---|
| PoE Budget | 410W |
Features
No products selected for comparison.
Videos
No videos available.
Reviews
[cusrev_all_reviews sort="DESC" sort_by="date" per_page="10" number="-1" show_summary_bar="true" show_media="true" show_products="true" categories="" product_tags="" tags="" products="current" shop_reviews="true" number_shop_reviews="-1" inactive_products="false" show_replies="false" show_more="5" min_chars="0" avatars="initials" users="all" add_review="true"]
Compatibility List
ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.
No compatibility lists available.
Hardware Compatibility List
| Speed | Brand | Model | Switch Silicon | Ports |
|---|---|---|---|---|
| 1G | Alpha Networks | BES2348T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
| 1G | Alpha Networks | SCG60D0-484T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
| 400G | Alpha Networks | SNJ61D0-320F | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 1G | Celestica | DS1000 | Broadcom Trident3-X2 | 48 × 1G RJ45 + 8 × 10G SFP+ |
| 25G | Celestica | DS2000 | Broadcom Trident3-X5 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Celestica | DS3000 | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Celestica | DS4000 | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 800G | Celestica | DS4101 | Broadcom Tomahawk4 | 32 × QSFP-DD800 |
| 800G | Celestica | DS5000 | Broadcom Tomahawk5 | 64 × OSFP800 |
| 1G | Dell Technologies | N3248TE-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 + 4 × 10G SFP+, 2 × 100G QSFP28 |
| 1G | Dell Technologies | N3248P-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| 1G | Dell Technologies | E3248P-ON | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | N3248X-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | E3248PXE-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28 |
| Multi-Gigabit | Dell Technologies | N3248PXE-ON | Broadcom Trident3-X5 | 48 × 1G/2.5G/5G/10G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28 |
| 25G | Dell Technologies | S5212F-ON | Broadcom Trident3-X5 | 12 × 25G SFP28 + 3 × 100G QSFP28 |
| 25G | Dell Technologies | S5224F-ON | Broadcom Trident3-X5 | 24 × 25G SFP28 + 4 × 100G QSFP28 |
| 25G | Dell Technologies | S5248F-ON | Broadcom Trident3-X7 | 48 × 25G SFP28 + 4 x 25G SFP28, 2 x 100G QSFP-DD |
| 25G | Dell Technologies | S5296F-ON | Broadcom Trident3-X7 | 96 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Dell Technologies | Z9264F-ON | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | Dell Technologies | S5232F-ON | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 100G | Dell Technologies | S5448F-ON | Broadcom Trident4-X9 | 48 × 100G SFP56-DD + 8x400G QSFP-DD |
| 400G | Dell Technologies | Z9332F-ON | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Dell Technologies | Z9664F-ON | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 400G | Dell Technologies | Z9432F-ON | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 800G | Dell Technologies | Z9864F-ON | Broadcom Tomahawk5 | 64 × 800G OSFP112 |
| 1G | Edgecore Networks | AS4625-54T | Broadcom Trident3-X2 | 48 × 1G RJ45 + 6 × 10G SFP+ |
| 1G | Edgecore Networks | AS4625-54P | Broadcom Trident3-X2 | 48 × 1G RJ45 PoE + 6 × 10G SFP+ |
| 1G | Edgecore Networks | AS4630-54TE | Broadcom Trident3-X3 | 48 × 1G RJ45 + 4 × 25G SFP28, 2 × 100G QSFP28 |
| 1G | Edgecore Networks | AS4630-54PE | Broadcom Trident3-X3 | 48 × 1G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28 |
| Multi-Gigabit | Edgecore Networks | AS4630-54NPE | Broadcom Trident3-X3 | 36 × 1.G/2.5G RJ45, 12 × 1G/2.5G/5G/10G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28 |
| 10G | Edgecore Networks | AS5835-54T | Broadcom Trident3-X5 | 48 × 10G RJ45 + 6 × 100G QSFP28 |
| 10G | Edgecore Networks | AS5835-54X | Broadcom Trident3-X5 | 48 × 10G SFP+ + 6 × 100G QSFP28 |
| 25G | Edgecore Networks | AS7326-56X | Broadcom Trident3-X7 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | Edgecore Networks | AS7712-32X | Broadcom Tomahawk | 32 × 100G QSFP28 |
| 100G | Edgecore Networks | AS7816-64X | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | Edgecore Networks | S7726-32X | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Edgecore Networks | AS9716-32D | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Edgecore Networks | AS9736-64D | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 400G | Edgecore Networks | AS9726-32DB | Broadcom Trident4-X11 | 32 × 400G QSFP-DD |
| 800G | Edgecore Networks | AIS800-64D | Broadcom Tomahawk5 | 64 × QSFP-DD800 |
| 25G | Extreme Networks | SLX 9150-48Y | Broadcom Trident3-X7 | 48 × 25G SFP28 + 6 × 100G QSFP28 |
| 100G | Extreme Networks | SLX 9250-32C | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | Micas Networks | M2-W6920-32QC2X | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 400G | Micas Networks | M2-W6930-64QC | Broadcom Tomahawk4 | 64 × 400G QSFP-DD |
| 25G | QCT | T4048-IX8 | Broadcom Trident3-X5 | 48 × 25G SFP28 + 8 × 100G QSFP28 |
| 100G | QCT | T7064-IX4 | Broadcom Tomahawk2 | 64 × 100G QSFP28 |
| 100G | QCT | T7032-IX7 | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 400G | QCT | T9032-IX9 | Broadcom Tomahawk3 | 32 × 400G QSFP-DD |
| 25G | UfiSpace | S8901-54XC | Broadcom Trident3-X5 | 48 × 25G SFP28 + 6 × 100G QSFP28 |
| 100G | UfiSpace | S9100-32X | Broadcom Trident3-X7 | 32 × 100G QSFP28 |
| 1G | Wistron | SO-BI48B-4E | Broadcom Trident3-X2 | 48 × 1G RJ45 + 4 × 25G SFP28 |
