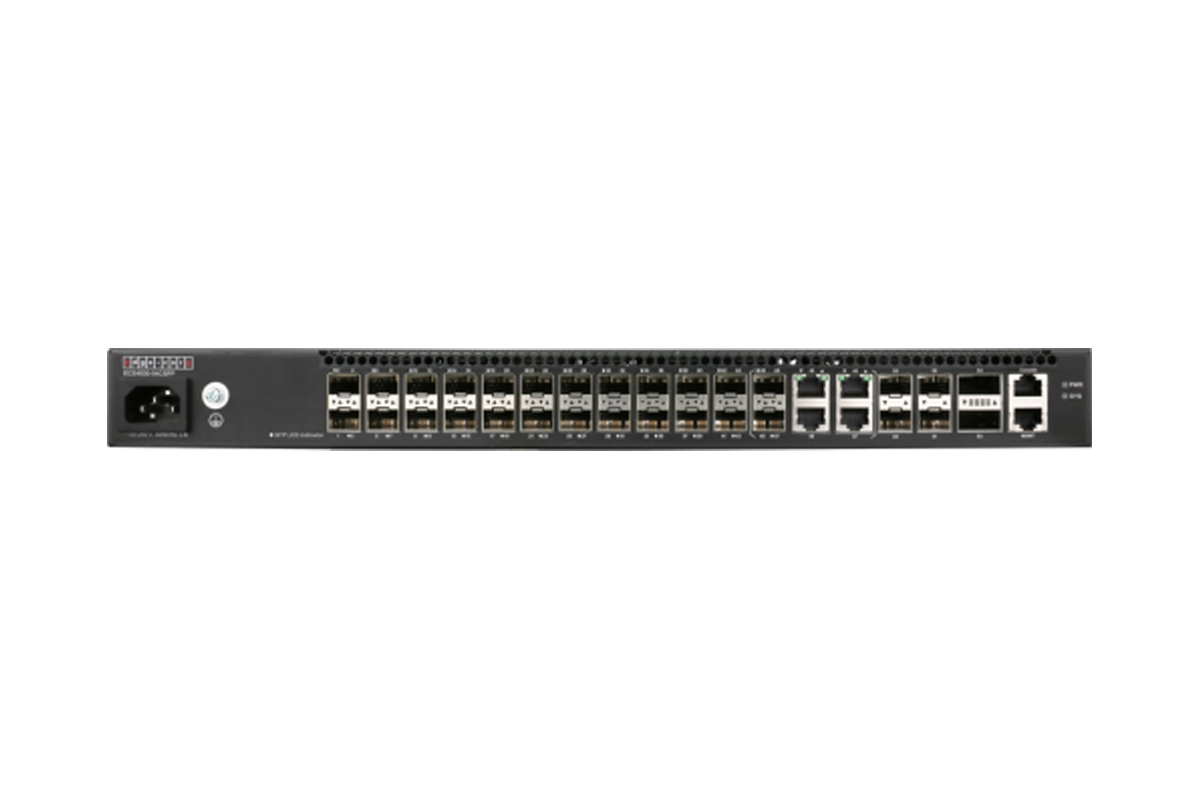

Edgecore ECS4530-54CSFP: 24x1G CSFP, 4x1G RJ45/ 2x1G CSFP, 4x10G SFP+, 2x20G QSFP+| L2/L3 | 1G Aggregation

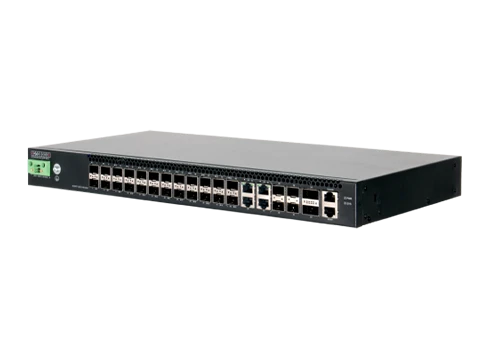

Edgecore ECS4530-54CSFP: 24x1G CSFP, 4x1G RJ45/ 2x1G CSFP, 4x10G SFP+, 2x20G QSFP+| L2/L3 | 1G Aggregation - Image 2

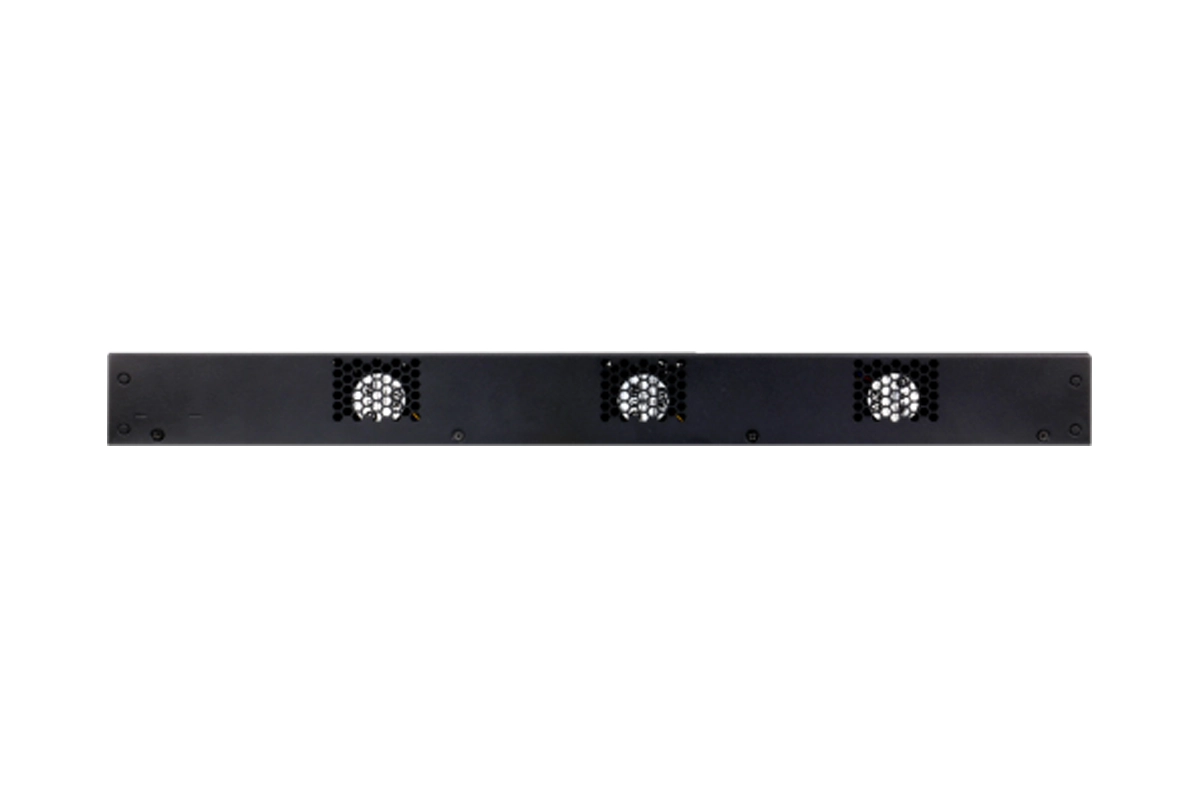

Edgecore ECS4530-54CSFP: 24x1G CSFP, 4x1G RJ45/ 2x1G CSFP, 4x10G SFP+, 2x20G QSFP+| L2/L3 | 1G Aggregation - Image 3
View details

Edgecore ECS4530-54CSFP: 24x1G CSFP, 4x1G RJ45/ 2x1G CSFP, 4x10G SFP+, 2x20G QSFP+| L2/L3 | 1G Aggregation

Edgecore Networks 24 x 1G CSFP, 4 x 1G Combo RJ45/ 2 x 1G Combo CSFP, 4 x 10G SFP+, 2 x 20G QSFP+, Aggregation Switch, L2/L3 Support, 1 x AC Front Access

Out of stock
20+ sold
Quantity
Get the Best Price
Free Product Trial
Book a Training
SKU ECS4530-54CSFP Categories , Tags , ,

Edgecore Networks 24 x 1G CSFP, 4 x 1G Combo RJ45/ 2 x 1G Combo CSFP, 4 x 10G SFP+, 2 x 20G QSFP+, Aggregation Switch, L2/L3 Support, 1 x AC Front Access

The Edgecore ECS4530 Series switch stands out as a cutting-edge solution for high-density Gigabit Ethernet fiber networks, featuring a remarkable configuration of four 10G uplink ports. Unlocking enhanced subscriber capacity, the option to integrate a CSFP transceiver with dual bidirectional fiber ports into a CSFP port proves invaluable, effectively doubling support per port. This intelligent design not only optimizes network performance but also streamlines spatial and cooling expenses traditionally linked to deploying multiple switches. Specifically crafted for ISPs/MSOs, the ECS4530 Series switch caters to the dynamic landscape of FTTH triple-play services, delivering up to a Gigabit of bandwidth to home users. Additionally, it serves as an ideal choice for ISPs/MSOs looking to consolidate FE/GE access switches with Gigabit fiber uplinks. Loaded with advanced features encompassing high availability, comprehensive security, robust multicast control, and cutting-edge QoS capabilities, this switch ensures optimal functionality at the network edge. Its user-friendly management interface ensures seamless operation, and with steadfast support for advanced IPv6 management, security, and multicast control, it seamlessly aligns with the evolving IPv6 landscape.

Specifications

General Specifications
Brand

Edgecore Networks
Data Rate

,

Model Number

ECS4530-54CSFP
Uplinks

Internal Hardware
DRAM

2GB
Flash Memory

Performance
Forwarding Rate

190 Mpps
Jumbo Frame

10KB
MAC Address

16K
Switching Capacity

256Gbps
Physical Characteristics
Dimensions (HxWxD)

440 x 220 x 44 mm (17.32 x 8.66 x 1.73 in)
Mounting

Weight

3 kg (6.61 lb)
Power Characteristics
Max Power Consumption

75.4 W
Power Supply

,

Environmental
Application Site

Indoor
Humidity

10% to 90% non condensing
Storage Temperature

Additional Features
Others

Front access

Features

No products selected for comparison.

Videos

No videos available.

Reviews

[cusrev_all_reviews sort="DESC" sort_by="date" per_page="10" number="-1" show_summary_bar="true" show_media="true" show_products="true" categories="" product_tags="" tags="" products="current" shop_reviews="true" number_shop_reviews="-1" inactive_products="false" show_replies="false" show_more="5" min_chars="0" avatars="initials" users="all" add_review="true"]

Compatibility List

ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.

No compatibility lists available.

Hardware Compatibility List

Speed Brand Model Switch Silicon Ports
1G Alpha Networks BES2348T Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
1G Alpha Networks SCG60D0-484T Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
400G Alpha Networks SNJ61D0-320F Broadcom Trident4-X11 32 × 400G QSFP-DD
1G Celestica DS1000 Broadcom Trident3-X2 48 × 1G RJ45 + 8 × 10G SFP+
25G Celestica DS2000 Broadcom Trident3-X5 48 × 25G SFP28 + 8 × 100G QSFP28
100G Celestica DS3000 Broadcom Trident3-X7 32 × 100G QSFP28
400G Celestica DS4000 Broadcom Tomahawk3 32 × 400G QSFP-DD
800G Celestica DS4101 Broadcom Tomahawk4 32 × QSFP-DD800
800G Celestica DS5000 Broadcom Tomahawk5 64 × OSFP800
1G Dell Technologies N3248TE-ON Broadcom Trident3-X3 48 × 1G RJ45 + 4 × 10G SFP+, 2 × 100G QSFP28
1G Dell Technologies N3248P-ON Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
1G Dell Technologies E3248P-ON Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies N3248X-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies E3248PXE-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies N3248PXE-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
25G Dell Technologies S5212F-ON Broadcom Trident3-X5 12 × 25G SFP28 + 3 × 100G QSFP28
25G Dell Technologies S5224F-ON Broadcom Trident3-X5 24 × 25G SFP28 + 4 × 100G QSFP28
25G Dell Technologies S5248F-ON Broadcom Trident3-X7 48 × 25G SFP28 + 4 x 25G SFP28, 2 x 100G QSFP-DD
25G Dell Technologies S5296F-ON Broadcom Trident3-X7 96 × 25G SFP28 + 8 × 100G QSFP28
100G Dell Technologies Z9264F-ON Broadcom Tomahawk2 64 × 100G QSFP28
100G Dell Technologies S5232F-ON Broadcom Trident3-X7 32 × 100G QSFP28
100G Dell Technologies S5448F-ON Broadcom Trident4-X9 48 × 100G SFP56-DD + 8x400G QSFP-DD
400G Dell Technologies Z9332F-ON Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Dell Technologies Z9664F-ON Broadcom Tomahawk4 64 × 400G QSFP-DD
400G Dell Technologies Z9432F-ON Broadcom Trident4-X11 32 × 400G QSFP-DD
800G Dell Technologies Z9864F-ON Broadcom Tomahawk5 64 × 800G OSFP112
1G Edgecore Networks AS4625-54T Broadcom Trident3-X2 48 × 1G RJ45 + 6 × 10G SFP+
1G Edgecore Networks AS4625-54P Broadcom Trident3-X2 48 × 1G RJ45 PoE + 6 × 10G SFP+
1G Edgecore Networks AS4630-54TE Broadcom Trident3-X3 48 × 1G RJ45 + 4 × 25G SFP28, 2 × 100G QSFP28
1G Edgecore Networks AS4630-54PE Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28
Multi-Gigabit Edgecore Networks AS4630-54NPE Broadcom Trident3-X3 36 × 1.G/2.5G RJ45, 12 × 1G/2.5G/5G/10G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28
10G Edgecore Networks AS5835-54T Broadcom Trident3-X5 48 × 10G RJ45 + 6 × 100G QSFP28
10G Edgecore Networks AS5835-54X Broadcom Trident3-X5 48 × 10G SFP+ + 6 × 100G QSFP28
25G Edgecore Networks AS7326-56X Broadcom Trident3-X7 48 × 25G SFP28 + 8 × 100G QSFP28
100G Edgecore Networks AS7712-32X Broadcom Tomahawk 32 × 100G QSFP28
100G Edgecore Networks AS7816-64X Broadcom Tomahawk2 64 × 100G QSFP28
100G Edgecore Networks S7726-32X Broadcom Trident3-X7 32 × 100G QSFP28
400G Edgecore Networks AS9716-32D Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Edgecore Networks AS9736-64D Broadcom Tomahawk4 64 × 400G QSFP-DD
400G Edgecore Networks AS9726-32DB Broadcom Trident4-X11 32 × 400G QSFP-DD
800G Edgecore Networks AIS800-64D Broadcom Tomahawk5 64 × QSFP-DD800
25G Extreme Networks SLX 9150-48Y Broadcom Trident3-X7 48 × 25G SFP28 + 6 × 100G QSFP28
100G Extreme Networks SLX 9250-32C Broadcom Trident3-X7 32 × 100G QSFP28
400G Micas Networks M2-W6920-32QC2X Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Micas Networks M2-W6930-64QC Broadcom Tomahawk4 64 × 400G QSFP-DD
25G QCT T4048-IX8 Broadcom Trident3-X5 48 × 25G SFP28 + 8 × 100G QSFP28
100G QCT T7064-IX4 Broadcom Tomahawk2 64 × 100G QSFP28
100G QCT T7032-IX7 Broadcom Trident3-X7 32 × 100G QSFP28
400G QCT T9032-IX9 Broadcom Tomahawk3 32 × 400G QSFP-DD
25G UfiSpace S8901-54XC Broadcom Trident3-X5 48 × 25G SFP28 + 6 × 100G QSFP28
100G UfiSpace S9100-32X Broadcom Trident3-X7 32 × 100G QSFP28
1G Wistron SO-BI48B-4E Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
