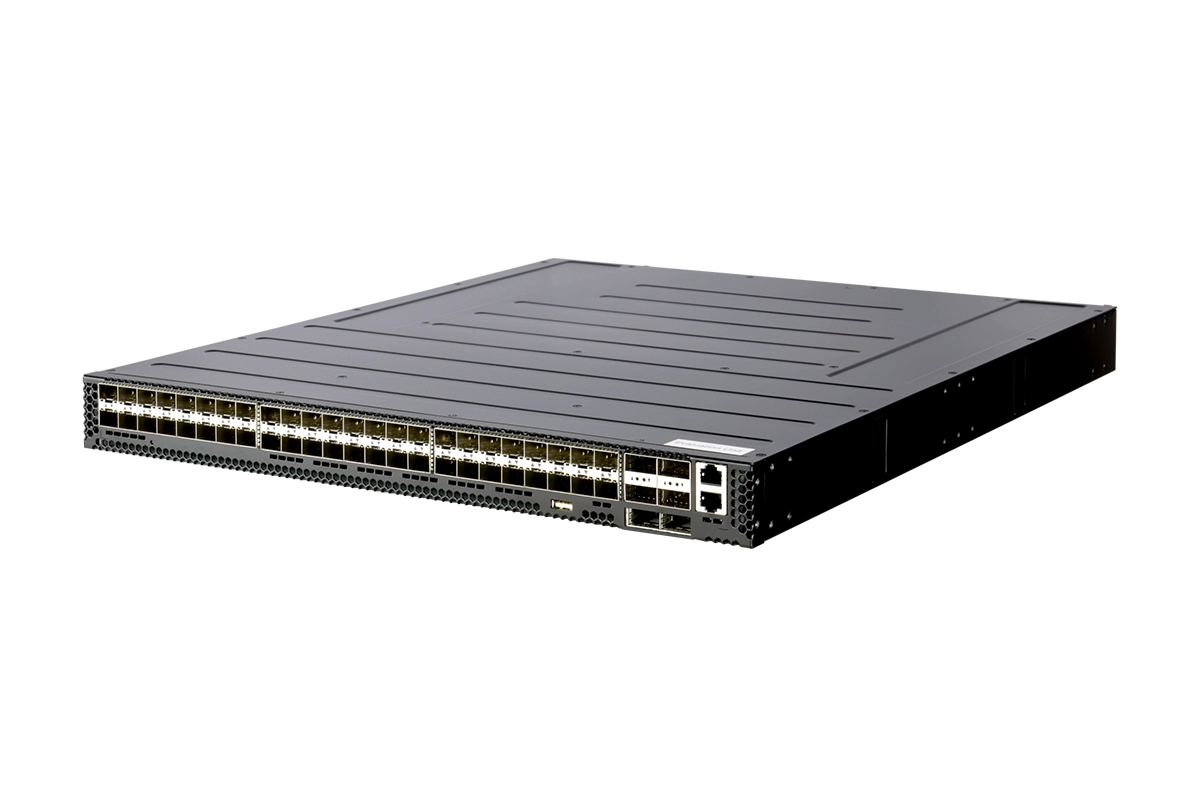

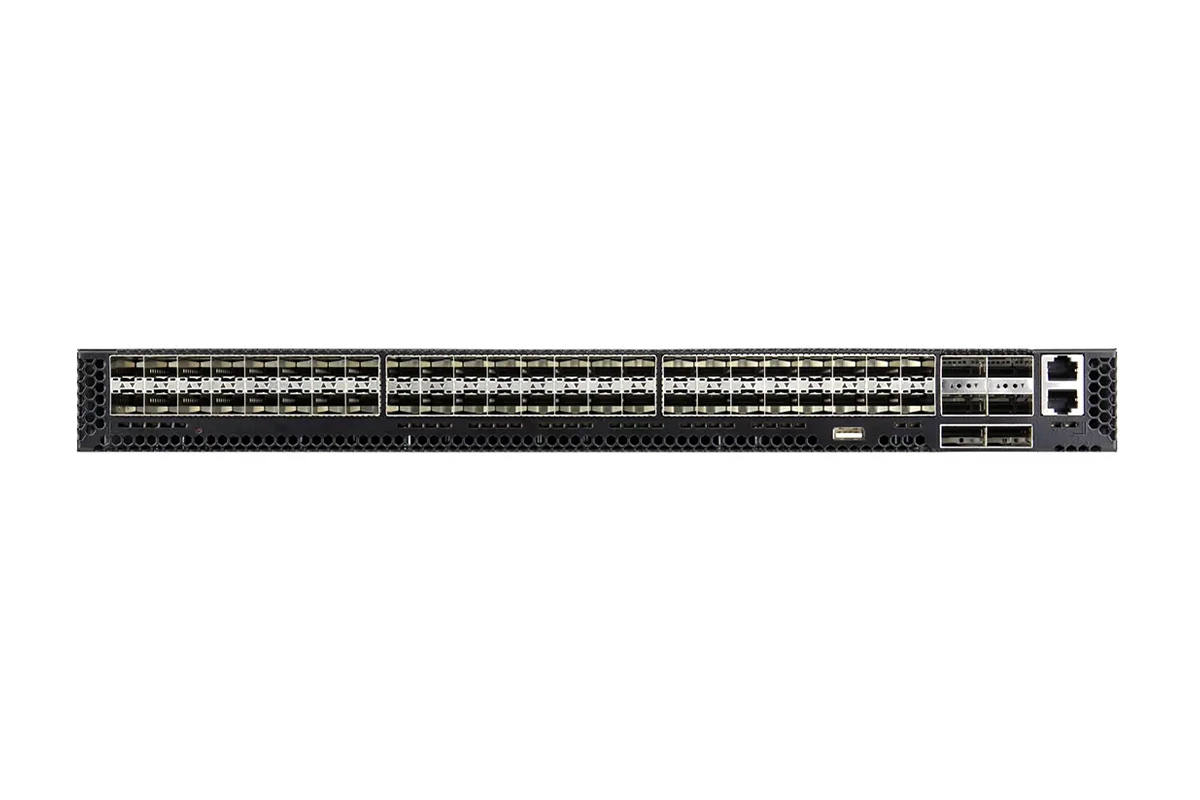

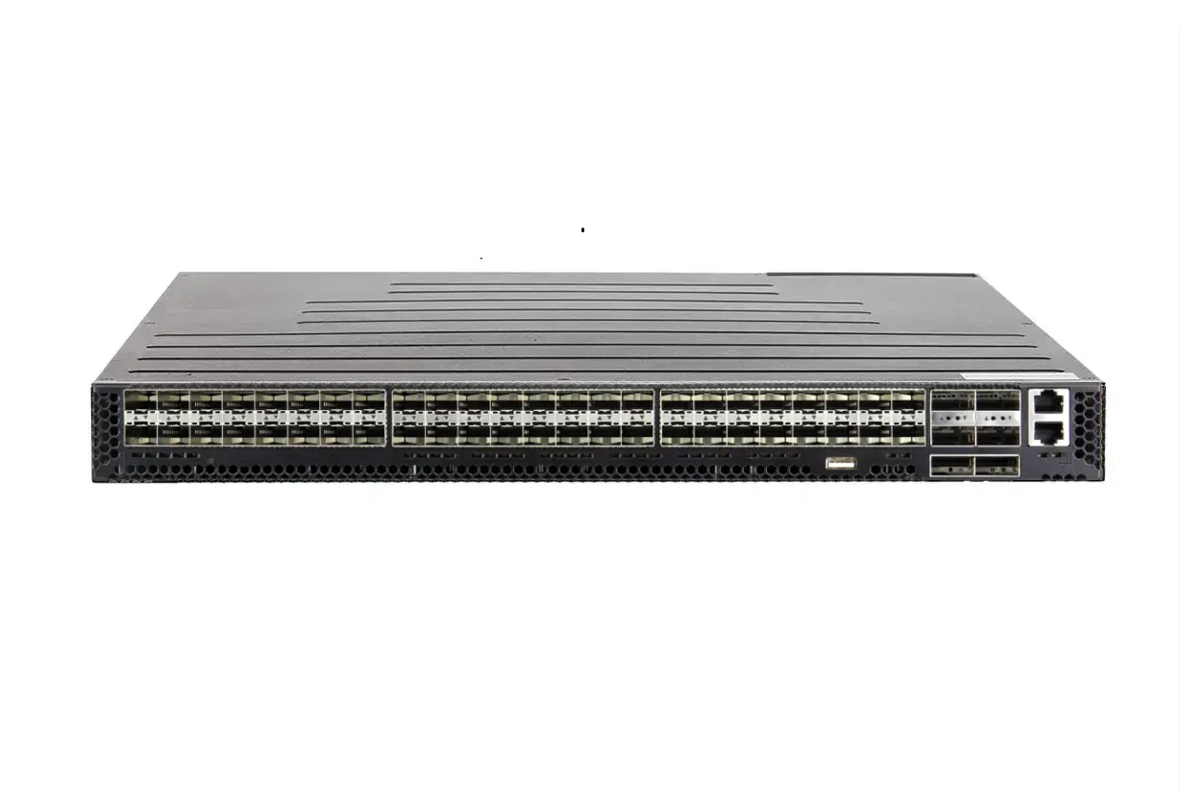

Edgecore Networks AGR100 (AS5912-54X) | 10G Aggregation Router

Edgecore AGR100, 48 x 10G SFP+, 6 x 100G QSFP28 Aggregation ONIE Router, Broadcom Qumran-MX, Intel Atom® C2538 CPU, 2 x AC or 2 x DC PSU, F-Front-to-Back or B-Back-to-Front

Out of stock
40+ sold
Quantity
Get the Best Price
Free Product Trial
Book a Training
SKU 5912-54X-O Categories , Tags , ,

Edgecore AGR100, 48 x 10G SFP+, 6 x 100G QSFP28 Aggregation ONIE Router, Broadcom Qumran-MX, Intel Atom® C2538 CPU, 2 x AC or 2 x DC PSU, F-Front-to-Back or B-Back-to-Front

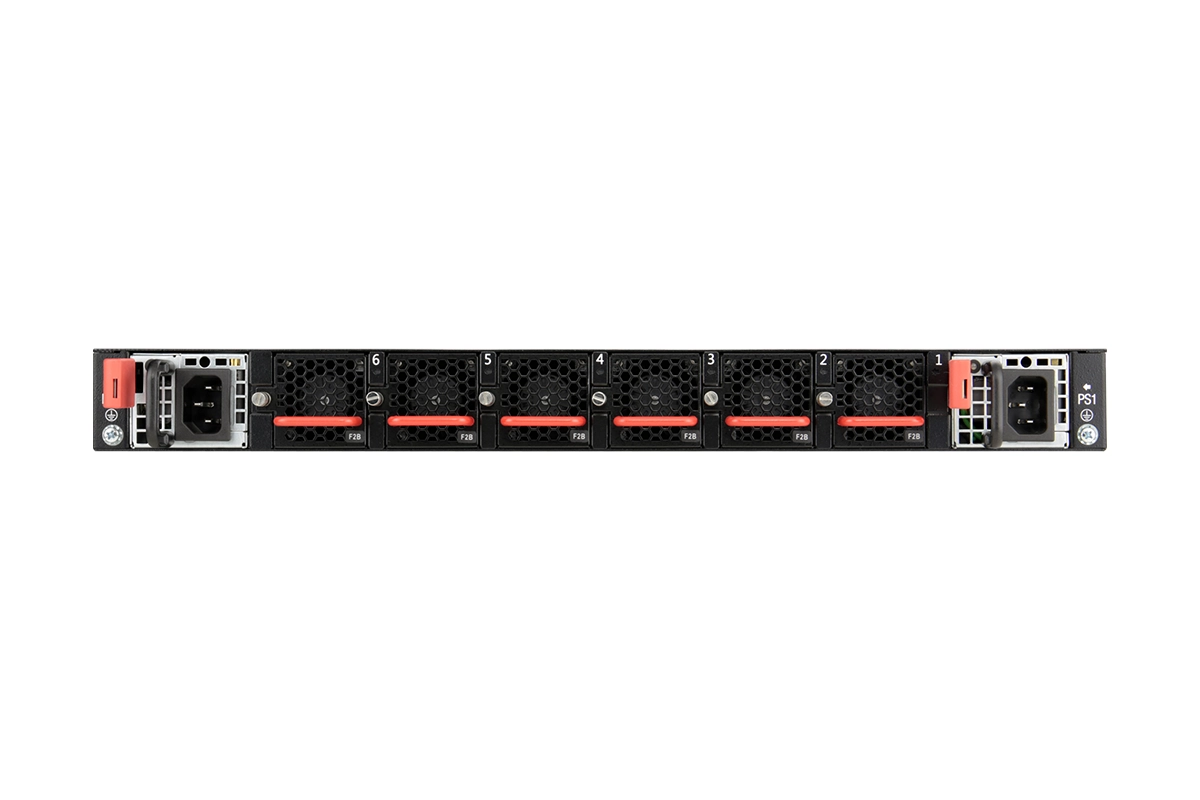

The Edgecore AGR100 switch is designed to meet the high-performance, availability, and network-scaling needs of cloud data centers and carrier access providers. It supports Layer 2 and Layer 3 switching across 48 x 10 GbE ports and 6 x 100 G uplinks, making it versatile for deployment as a top-of-rack switch, part of a 100 GbE or 40 GbE distributed spine to create a non-blocking folded-Clos data center fabric, or as a carrier access/aggregation switch. The switch is rack-mountable in a standard 19-inch rack and includes high-availability features such as redundant, hot-swappable AC or -48 VDC power supply units (PSUs), 5+1 redundant fan modules, and options for front-to-back or back-to-front airflow. It is a cost-effective solution for data center top-of-rack and carrier access/aggregation switching, with 48 SFP+ switch ports supporting 10 GbE or 1 GbE, and 6 x 100G QSFP28 ports on the front. The switch is pre-loaded with the Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial Network Operating System (NOS) offerings and is compatible with Open Network Linux (ONL). Management options include Ethernet and console RJ-45 ports, along with hot-swappable, load-sharing, redundant PSUs and 5+1 redundant fan modules.

Specifications

General Specifications
Brand

Edgecore Networks
Data Rate

Ports

Uplinks

Internal Hardware
CPU

DRAM

2 x 8GB DDR4
Flash Memory

Option Storage

32GB mSATA
Switch Silicon

Performance
Forwarding Rate

720 Mpps
Jumbo Frame

9K
MAC Address

750K
Packet Buffer

16MB On-Chip 6GB DRAM-Based
Switching Capacity

800 Gbps
Physical Characteristics
Airflow

,

Chassis Height

Dimensions (HxWxD)

44 x 438 x 609 mm (1.71 x 17.26 x 23.97 in)
Fan Module

6 (5 + 1 Redundancy)
Weight

9.7 kg (21.38 lb)
Software & Compatibility
Compatible Operating System

, , , , ,

ONIE

Power Characteristics
Max Power Consumption

360W
Power Supply

,

Environmental
Operating Temperature

0 to 40°C (32 to 104°F)
PoE Information
PoE

Features

No products selected for comparison.

Videos

Reviews

[cusrev_all_reviews sort="DESC" sort_by="date" per_page="10" number="-1" show_summary_bar="true" show_media="true" show_products="true" categories="" product_tags="" tags="" products="current" shop_reviews="true" number_shop_reviews="-1" inactive_products="false" show_replies="false" show_more="5" min_chars="0" avatars="initials" users="all" add_review="true"]

Compatibility List

ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.

No compatibility lists available.

Hardware Compatibility List

Speed Brand Model Switch Silicon Ports
1G Alpha Networks BES2348T Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
1G Alpha Networks SCG60D0-484T Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
400G Alpha Networks SNJ61D0-320F Broadcom Trident4-X11 32 × 400G QSFP-DD
1G Celestica DS1000 Broadcom Trident3-X2 48 × 1G RJ45 + 8 × 10G SFP+
25G Celestica DS2000 Broadcom Trident3-X5 48 × 25G SFP28 + 8 × 100G QSFP28
100G Celestica DS3000 Broadcom Trident3-X7 32 × 100G QSFP28
400G Celestica DS4000 Broadcom Tomahawk3 32 × 400G QSFP-DD
800G Celestica DS4101 Broadcom Tomahawk4 32 × QSFP-DD800
800G Celestica DS5000 Broadcom Tomahawk5 64 × OSFP800
1G Dell Technologies N3248TE-ON Broadcom Trident3-X3 48 × 1G RJ45 + 4 × 10G SFP+, 2 × 100G QSFP28
1G Dell Technologies N3248P-ON Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
1G Dell Technologies E3248P-ON Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies N3248X-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies E3248PXE-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 + 4 x 25G SFP28, 2 x 100G QSFP28
Multi-Gigabit Dell Technologies N3248PXE-ON Broadcom Trident3-X5 48 × 1G/2.5G/5G/10G RJ45 PoE + 4 x 25G SFP28, 2 x 100G QSFP28
25G Dell Technologies S5212F-ON Broadcom Trident3-X5 12 × 25G SFP28 + 3 × 100G QSFP28
25G Dell Technologies S5224F-ON Broadcom Trident3-X5 24 × 25G SFP28 + 4 × 100G QSFP28
25G Dell Technologies S5248F-ON Broadcom Trident3-X7 48 × 25G SFP28 + 4 x 25G SFP28, 2 x 100G QSFP-DD
25G Dell Technologies S5296F-ON Broadcom Trident3-X7 96 × 25G SFP28 + 8 × 100G QSFP28
100G Dell Technologies Z9264F-ON Broadcom Tomahawk2 64 × 100G QSFP28
100G Dell Technologies S5232F-ON Broadcom Trident3-X7 32 × 100G QSFP28
100G Dell Technologies S5448F-ON Broadcom Trident4-X9 48 × 100G SFP56-DD + 8x400G QSFP-DD
400G Dell Technologies Z9332F-ON Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Dell Technologies Z9664F-ON Broadcom Tomahawk4 64 × 400G QSFP-DD
400G Dell Technologies Z9432F-ON Broadcom Trident4-X11 32 × 400G QSFP-DD
800G Dell Technologies Z9864F-ON Broadcom Tomahawk5 64 × 800G OSFP112
1G Edgecore Networks AS4625-54T Broadcom Trident3-X2 48 × 1G RJ45 + 6 × 10G SFP+
1G Edgecore Networks AS4625-54P Broadcom Trident3-X2 48 × 1G RJ45 PoE + 6 × 10G SFP+
1G Edgecore Networks AS4630-54TE Broadcom Trident3-X3 48 × 1G RJ45 + 4 × 25G SFP28, 2 × 100G QSFP28
1G Edgecore Networks AS4630-54PE Broadcom Trident3-X3 48 × 1G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28
Multi-Gigabit Edgecore Networks AS4630-54NPE Broadcom Trident3-X3 36 × 1.G/2.5G RJ45, 12 × 1G/2.5G/5G/10G RJ45 PoE + 4 × 25G SFP28, 2 × 100G QSFP28
10G Edgecore Networks AS5835-54T Broadcom Trident3-X5 48 × 10G RJ45 + 6 × 100G QSFP28
10G Edgecore Networks AS5835-54X Broadcom Trident3-X5 48 × 10G SFP+ + 6 × 100G QSFP28
25G Edgecore Networks AS7326-56X Broadcom Trident3-X7 48 × 25G SFP28 + 8 × 100G QSFP28
100G Edgecore Networks AS7712-32X Broadcom Tomahawk 32 × 100G QSFP28
100G Edgecore Networks AS7816-64X Broadcom Tomahawk2 64 × 100G QSFP28
100G Edgecore Networks S7726-32X Broadcom Trident3-X7 32 × 100G QSFP28
400G Edgecore Networks AS9716-32D Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Edgecore Networks AS9736-64D Broadcom Tomahawk4 64 × 400G QSFP-DD
400G Edgecore Networks AS9726-32DB Broadcom Trident4-X11 32 × 400G QSFP-DD
800G Edgecore Networks AIS800-64D Broadcom Tomahawk5 64 × QSFP-DD800
25G Extreme Networks SLX 9150-48Y Broadcom Trident3-X7 48 × 25G SFP28 + 6 × 100G QSFP28
100G Extreme Networks SLX 9250-32C Broadcom Trident3-X7 32 × 100G QSFP28
400G Micas Networks M2-W6920-32QC2X Broadcom Tomahawk3 32 × 400G QSFP-DD
400G Micas Networks M2-W6930-64QC Broadcom Tomahawk4 64 × 400G QSFP-DD
25G QCT T4048-IX8 Broadcom Trident3-X5 48 × 25G SFP28 + 8 × 100G QSFP28
100G QCT T7064-IX4 Broadcom Tomahawk2 64 × 100G QSFP28
100G QCT T7032-IX7 Broadcom Trident3-X7 32 × 100G QSFP28
400G QCT T9032-IX9 Broadcom Tomahawk3 32 × 400G QSFP-DD
25G UfiSpace S8901-54XC Broadcom Trident3-X5 48 × 25G SFP28 + 6 × 100G QSFP28
100G UfiSpace S9100-32X Broadcom Trident3-X7 32 × 100G QSFP28
1G Wistron SO-BI48B-4E Broadcom Trident3-X2 48 × 1G RJ45 + 4 × 25G SFP28
